In hydraulic and pneumatic systems, the quality of tube fitting connections is often overlooked. One of the most easily neglected yet critical steps in tube preparation is deburring the tube end. After cutting steel tubes, sharp burrs, flash, and uneven surfaces inevitably remain on the inner and outer walls. If left untreated, these defects can damage seals, cause valve spools to stick, and ultimately lead to system failure. XYOON KC-C01 steel tube deburring machine was built for exactly this purpose — providing a complete tube-end preparation solution that ensures connection reliability right from the first step.
XYOON KC-C01 is a steel tube deburring machine designed specifically to solve the pain points left after cutting hydraulic steel tubes — residual inner and outer burrs, flash, and sharp edges. Unlike traditional manual deburring, which is time-consuming and inconsistent, the KC-C01 completes three critical operations in a single pass: inner-wall deburring, outer-wall edge removal, and standard end-face chamfering. This integrated processing approach eliminates common system failures such as line leakage and seal scoring at the source.
The unit runs on 220 V single-phase AC power with a 300 W motor, suitable for most workshop environments. It processes steel tubes with outside diameters from Φ6 mm to Φ42 mm, covering the full range of commonly used metric sizes in hydraulic systems. The chamfering tool speed is adjustable from 0 to 300 rpm via a speed-adjustment knob, so operators can flexibly set the cutting speed according to tube material and wall thickness.
Specifications: 220 V single-phase AC · 300 W motor · Tube OD Φ6–Φ42 mm · Speed 0–300 rpm adjustable · Tube length 50 mm to 6 m · Quick-change carbide tip rated for 30,000–50,000 carbon-steel tubes.
1. Long-life carbide cutting tips
A highlight of the KC-C01 is its quick-change carbide cutting tip. A single tip processes 30,000 to 50,000 carbon-steel tubes, keeping maintenance costs extremely low. This durability makes it an economical choice for high-volume production, where tool-change downtime directly impacts efficiency.
2. Broad material and size compatibility
The KC-C01 works with a wide variety of tube materials, including carbon steel, stainless steel, copper, aluminum, and titanium alloy. It handles tube lengths from 50 mm short pieces up to 6 m long tubes, flexibly serving both small-batch prototyping and large-scale production. This versatility ensures one machine can support many applications across different industries.
3. Real-time viewing and clean operation
The machine is fitted with a transparent viewing window so operators can observe the cutting status in real time, ensuring the chamfering proceeds correctly and the tube end meets specification. A built-in chip tray collects the metal debris generated during processing, keeping the work area clean and reducing cleanup time.
Using the KC-C01 is simple and safe:
1. Connect the 220 V single-phase AC power and release the emergency stop switch.

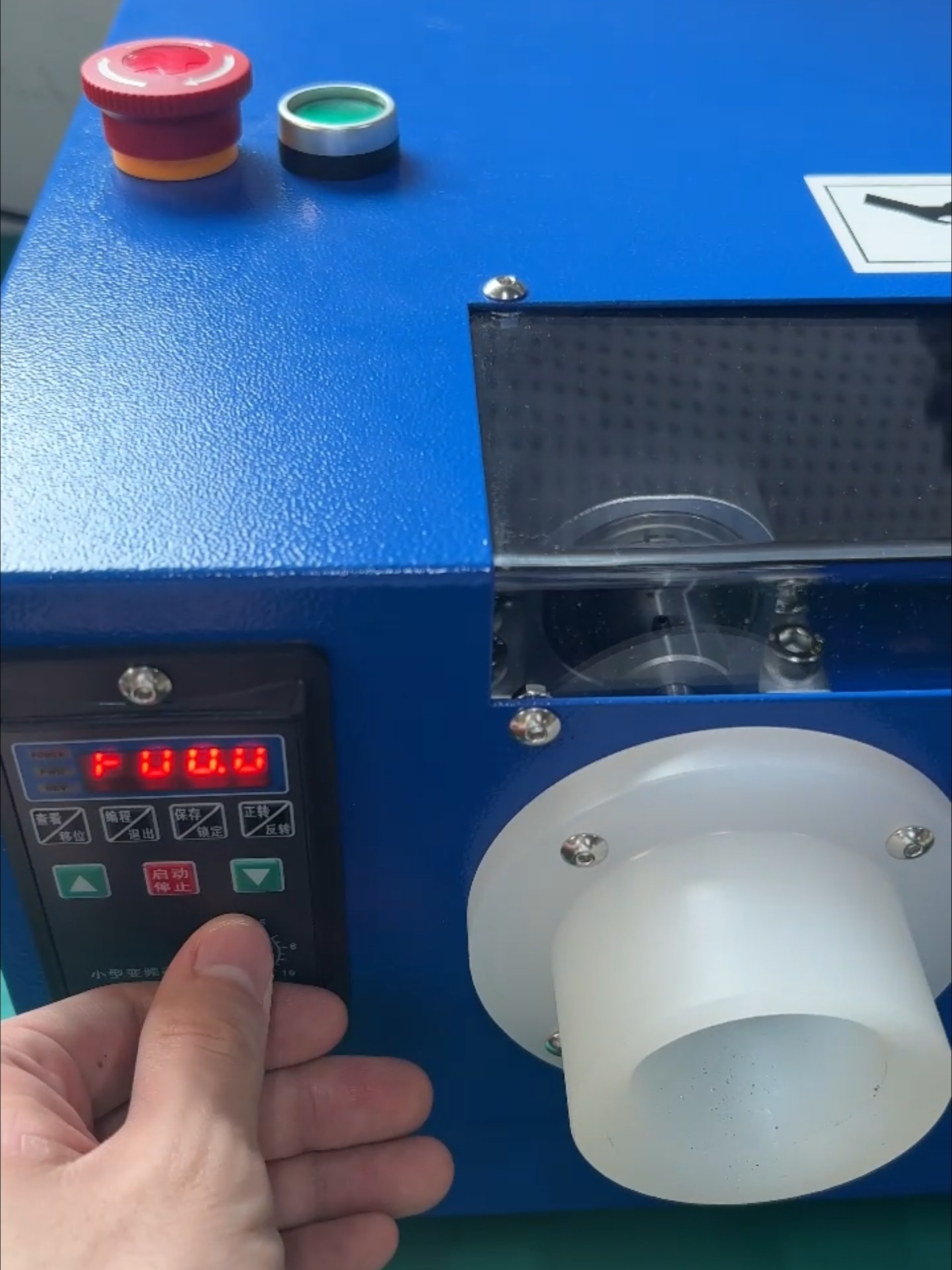

2. Set an appropriate tool speed via the speed-adjustment knob.
3. Press the work button — the digital indicator lights up.
4. Align the steel tube with the center of the inner and outer chamfering cutters through the transparent window.
5. Hold the tube with both hands and push it inward until the chamfering is complete.
6. The chip tray automatically collects debris for easy cleanup.
The KC-C01 is equipped with an emergency stop button for immediate shutdown in critical situations. Before starting, make sure the tube is correctly aligned to avoid tool damage or uneven chamfering.
XYOON KC-C01 steel tube deburring machine is more than a chamfering tool — it is the foundation of reliable hydraulic tube fitting connections. By ensuring every tube end is properly deburred and chamfered, the KC-C01 eliminates the root causes of many common system failures. Whether you process carbon steel, stainless steel, or copper, the KC-C01 delivers consistent, high-quality results — saving time, reducing waste, and improving overall system reliability.
-
