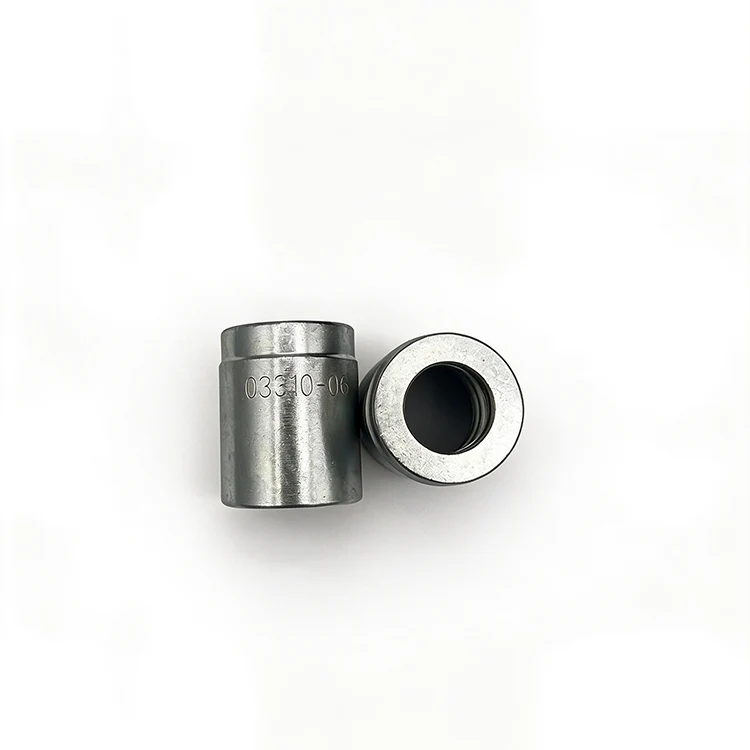

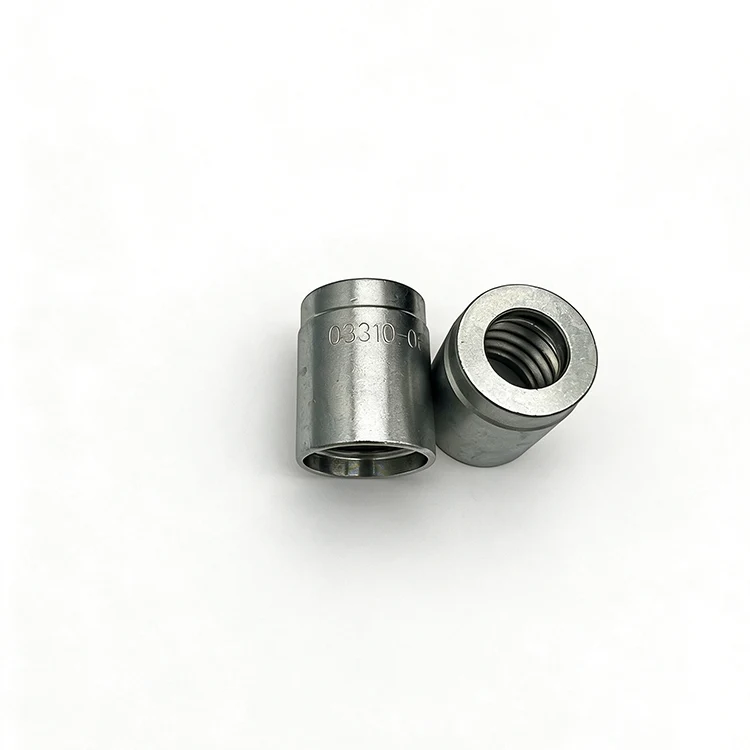

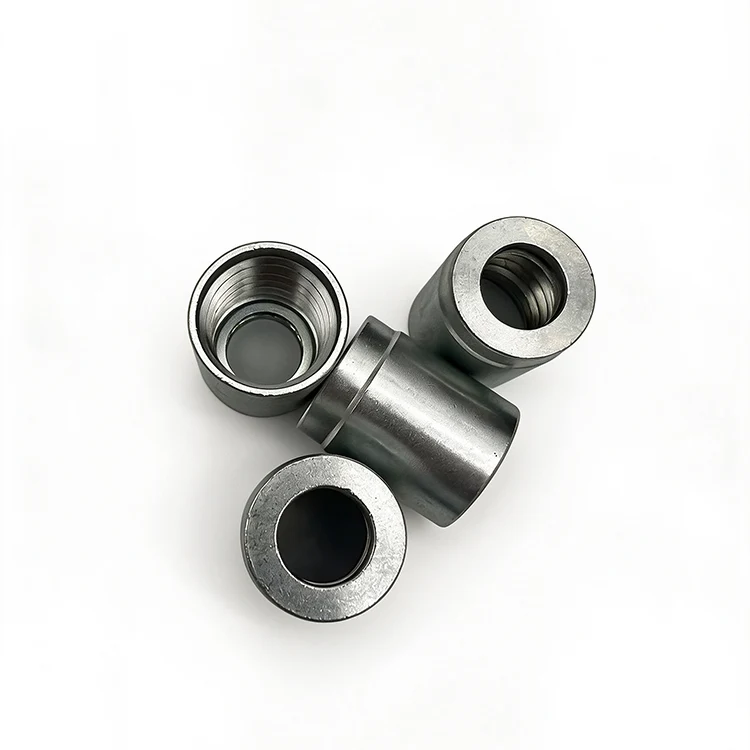

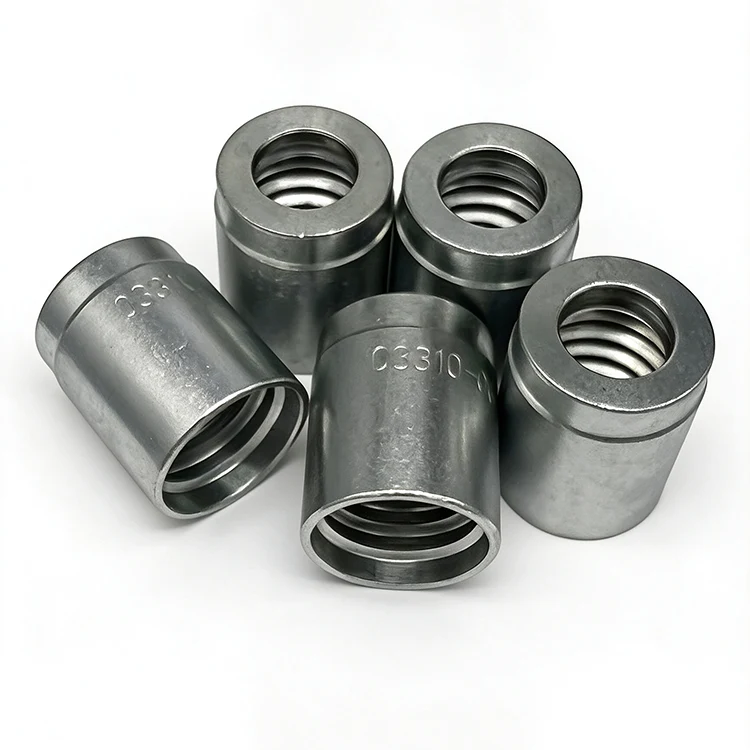

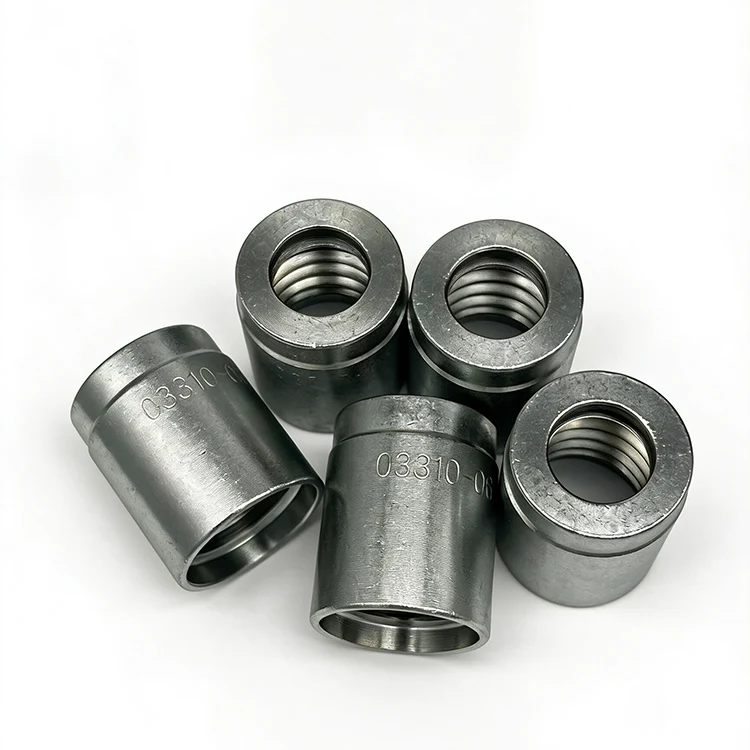

Crimping Hydraulic Sleeve

Crimping Hydraulic Sleeve are cylindrical metal fittings that work with matching hose stems and hydraulic hoses. When compressed by a crimping machine, the sleeve deforms evenly to lock the hose between the sleeve and stem, forming a permanent pressure-resistant connection.

● Replaces unreliable hose clamps for high-pressure applications

● Maintains stable sealing under impulse pressure and mechanical vibration

● Fully compatible with standard hydraulic hose stems per SAE and DIN norms

Core Advantages

Precision dimensional control: Inner diameter tolerance±0.05mm, ensures uniform crimp deformation and consistent pull-out strength

High pressure rating: Matches 1SN/2SN braided hoses and 4SP/4SH spiral hoses, working pressure up to 600bar (8700PSI)

Reliable anti-corrosion: Standard 8–12μm zinc plating with 500+ hours salt spray resistance; black phosphate and stainless steel options available

Hose-friendly design: Smooth inner chamfer protects the hose outer layer from damage during assembly, extends hose service life

Universal interchangeability: Fits standard hose stems from mainstream global brands, no compatibility barriers

Typical Industries

Construction machinery: Excavators, loaders, cranes and bulldozer hydraulic hose assemblies

Mining equipment: Hydraulic supports, coal mining machinery and underground hydraulic pipelines

Agricultural machinery: Tractors, harvesters and irrigation hydraulic systems

Industrial hydraulics: Injection molding machines, hydraulic power units and metallurgical equipment

Marine & offshore: Ship hydraulic systems and deck machinery

After-sales & Technical Support

Crimping guidance: Provide detailed crimp parameter tables, step-by-step guides and operation videos

Troubleshooting: 24-hour online technical support for leakage, hose pull-off and matching issues

On-site support: On-site crimping process training available for bulk OEM customers

Accessory supply: Long-term supply of matching hose stems, nuts and full hose assembly accessories

Certification & Quality Assurance

Certifications Held:

ISO 9001:2015–Quality management system certified

CE–EU safety directive compliant

SAE J516 / DIN–Standard compliant

Quality Assurance:

Raw material inspection→Precision CNC machining→Inner diameter dimensional inspection (±0.05mm)→Chamfer verification→100% surface treatment inspection per batch. Factory pass rate consistently above 99.8%. Full traceability by unique batch number.

Frequently Asked Questions (FAQ)

1、Are your Crimping Hydraulic Sleeves compatible with other brands of hose stems?

Yes, our dimensions fully comply with SAE J516 and DIN standards, and are interchangeable with most mainstream brands.

2、Can you provide crimping data for our crimping machine?

Yes, we provide standard crimp diameter parameters for each size, and can adjust data for your specific hose brand.

3、What is the minimum order quantity?

Regular sizes have no strict MOQ, even 10pcs sample orders are acceptable. Custom sizes start from 500pcs.

4、Do you offer stainless steel crimping sleeves?

Yes, we supply 304 and 316L stainless steel sleeves for corrosive working environments.
