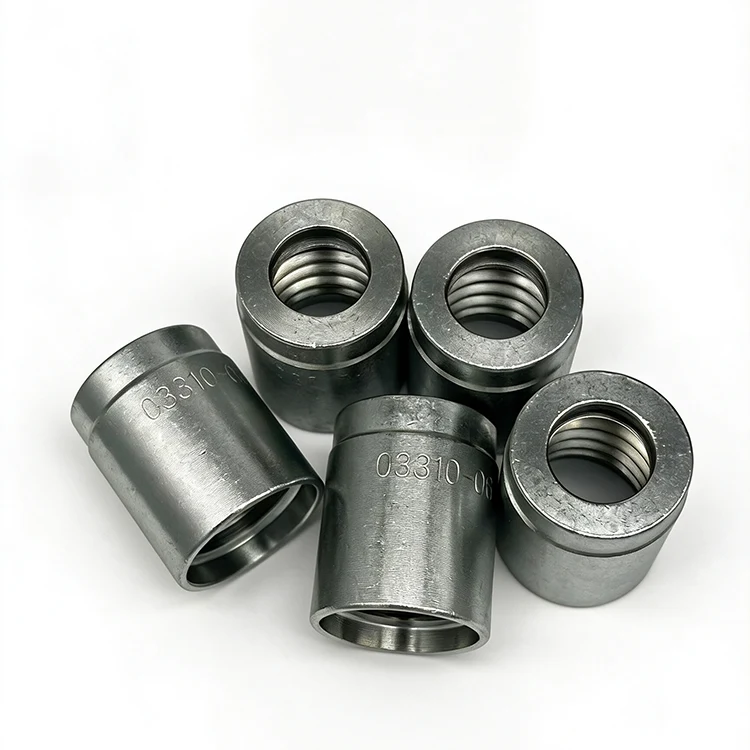

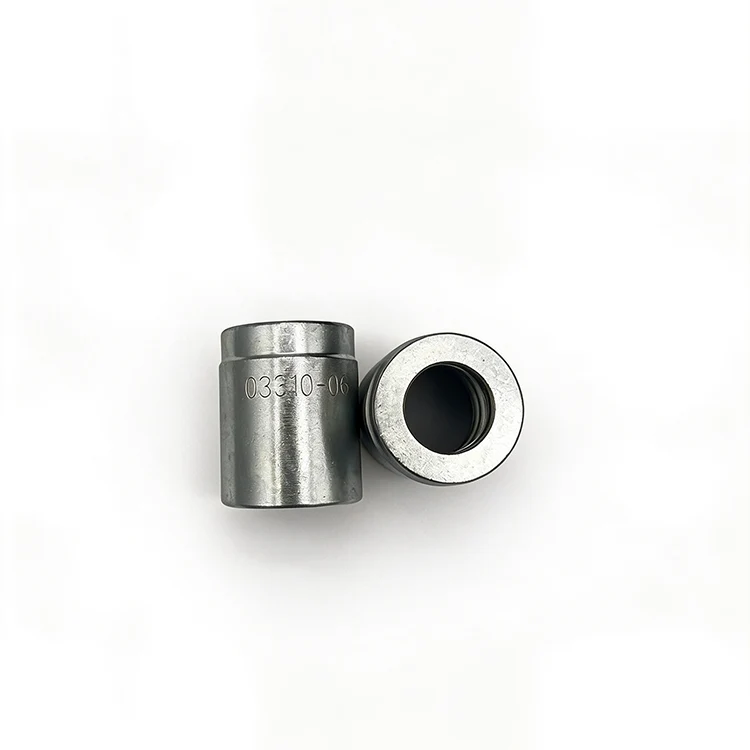

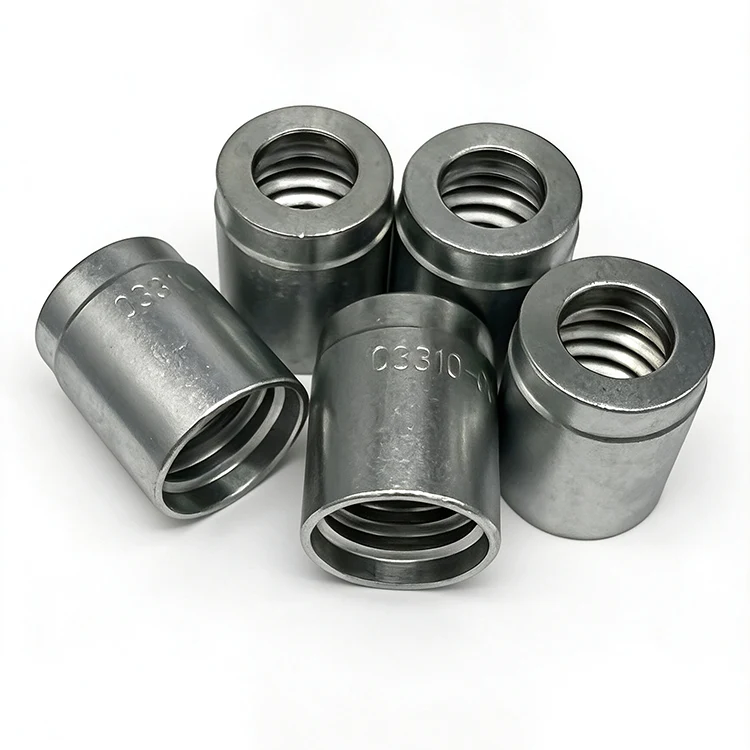

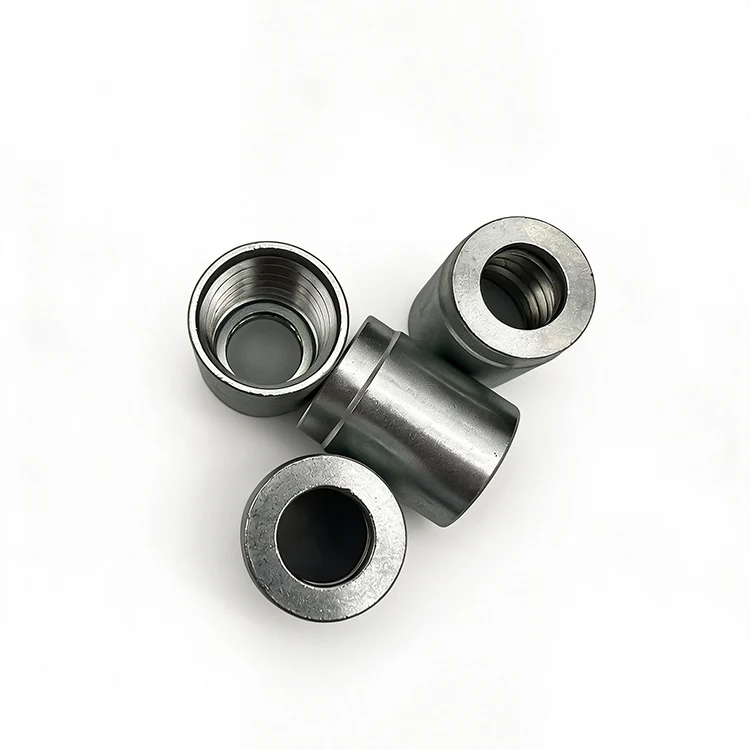

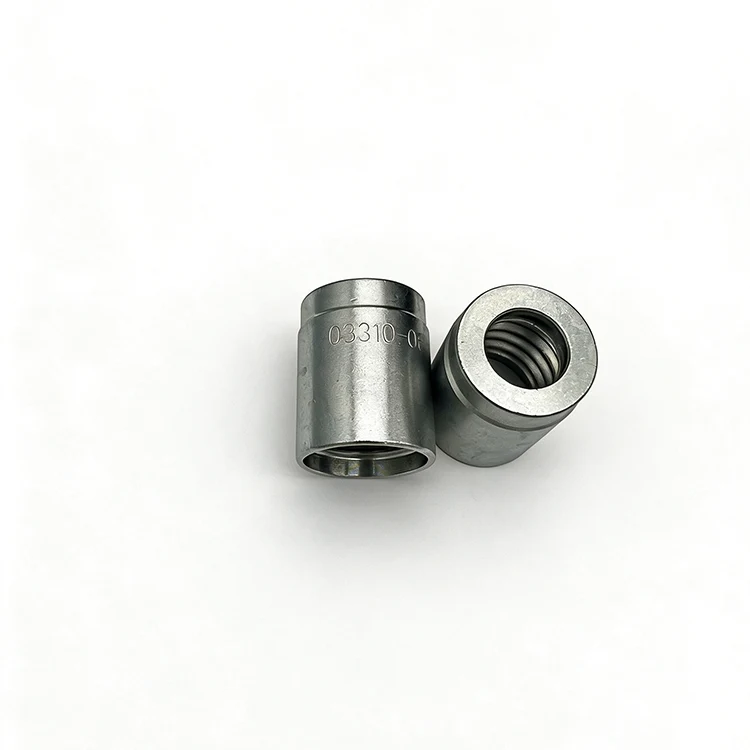

304 Stainless Hydraulic Sleeve

ISO 9001:2015, CE and RoHS compliant, the XYOON 304 Stainless Hydraulic Sleeve is a corrosion-resistant bite-type component for stainless steel tube connections. Made of genuine 18/8 stainless steel with a passivated surface, it delivers reliable metal-to-metal sealing at temperatures from -40°C to +200°C with 1000+ hours salt spray resistance. No plating peeling risk, RoHS compliant, ideal for food, beverage, water treatment, and semiconductor auxiliary piping. Material traceability with MTR certificate per batch.

Product Definition & Function

304 Stainless Hydraulic Sleeves are precision compression components for stainless steel seamless tube connections. When compressed axially, the sleeve edge bites into the tube wall to form a permanent, corrosion-resistant seal, replacing carbon steel sleeves in rust-prone and clean-media scenarios.

No plating peeling risk, no pollution to conveyed media

Resists atmospheric corrosion, fresh water and weak acid/alkali environments

Compatible with 304 seamless steel tubes and sanitary grade pipelines

Core Advantages

Genuine 304 material: 18/8 chromium-nickel composition, 100% material traceability

Clean passivated surface: Burr-free cutting edge, no heavy metal plating, meets RoHS requirements

Reliable corrosion resistance: 1000+ hours neutral salt spray resistance, suitable for humid and outdoor environments

Wide temperature range: Works stably from -40°C to +200°C, suitable for hot water and thermal oil lines

Sanitary compatibility: Smooth surface, easy to clean, suitable for food and pharmaceutical auxiliary pipelines

Typical Industries

Food & beverage: Dairy, brewing and beverage production process pipelines

Water treatment: RO systems, purified water and municipal water supply pipelines

Light chemical: Daily chemical, cosmetic and pharmaceutical auxiliary fluid lines

Marine deck equipment: Fresh water systems and non-corrosive fluid pipelines

Semiconductor: Clean gas and ultrapure water auxiliary systems

Certifications & Quality Assurance

System certifications: ISO 9001:2015, CE, RoHS compliant

Material certification: Each batch comes with 304 material test report (MTR)

Precision inspection: CNC precision machining + grinding, 100% dimensional and edge quality inspection

Corrosion test: Random salt spray test per batch to verify rust resistance

Cleanliness control: Food-grade orders produced in dust-free workshop, no oil residue

Quality Assurance:

Raw material incoming inspection (spectral analysis) → Precision CNC machining → Edge quality inspection → Surface finish verification → 100% dimensional inspection per batch → Random salt spray test per batch. Factory pass rate consistently above 99.8%. Full traceability by unique batch number with MTR certificate.

Frequently Asked Questions (FAQ)

1、Will 304 stainless steel rust in coastal areas?

304 resists atmospheric and fresh water corrosion, but may develop surface rust in long-term high-salt coastal environments. We recommend 316 for coastal and seawater scenarios.

2、Can 304 Stainless Hydraulic Sleeves be used with stainless steel tubes of different hardness?

Yes, our edge angle is optimized for standard stainless steel seamless tubes to ensure reliable bite without cracking.

3: Can 304 stainless sleeves be used in high-temperature applications?

A: Yes, they operate stably from -40°C to +200°C, making them suitable for hot water, thermal oil, and high-temperature process lines.

4: What is the difference between 304 and 316 stainless steel sleeves?

A: 304 is suitable for atmospheric, fresh water, and mild chemical environments. 316 contains molybdenum, offering superior resistance to chlorides and seawater, recommended for coastal and marine applications.

5: Do you provide material test reports?

A: Yes, each batch comes with a complete MTR (Material Test Report) verifying chemical composition and mechanical properties, ensuring full material traceability.
