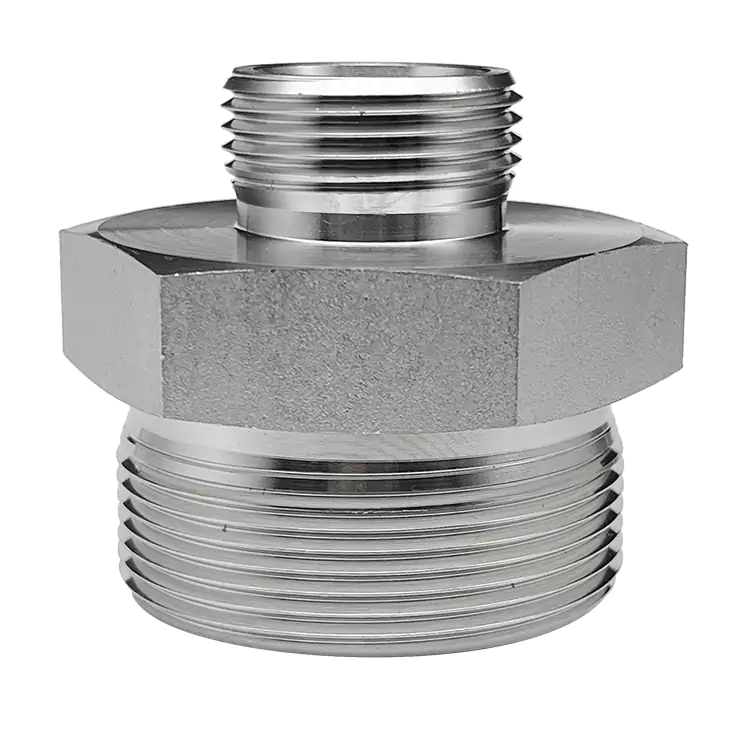

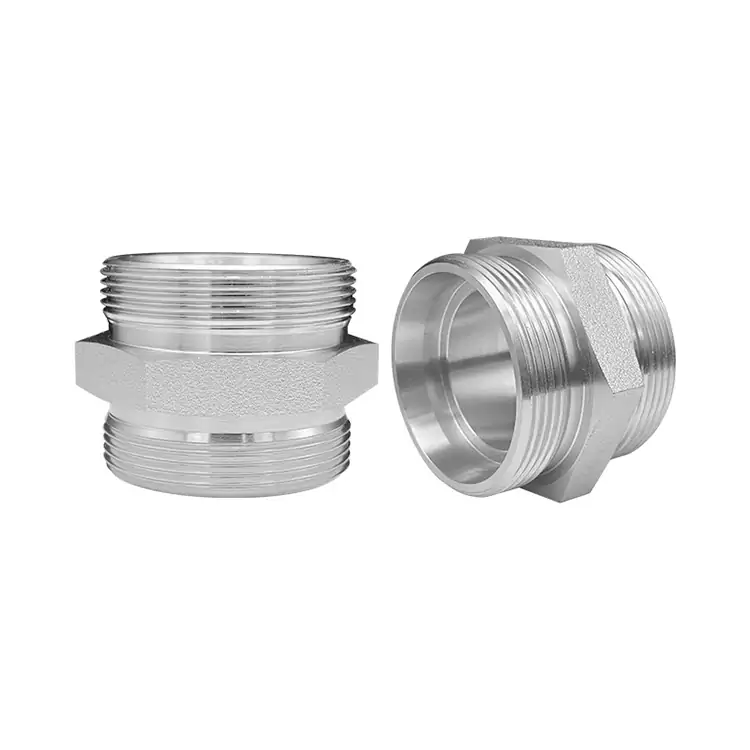

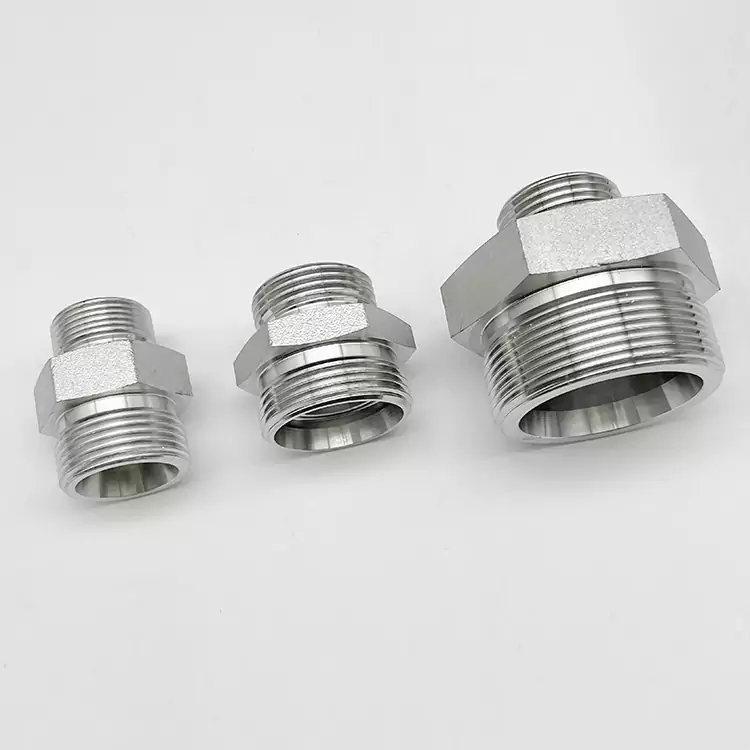

Ferrule Hydraulic Fittin

In modern industrial fluid control systems, connection reliability directly determines equipment efficiency and safety. XYOON Ferrule Hydraulic Fitting are designed to solve this core challenge. They are not merely simple pipe connectors; they are a mechanical connection solution that utilizes a unique ferrule biting into the tube wall, combined with nut tightening, to form a high-strength, leak-proof seal. Whether for hydraulic oil, gas, or water media, these fittings provide stable and reliable sealing performance even under severe vibration or sudden pressure fluctuations, making them indispensable "joints" in industrial automation, construction machinery, and chemical equipment.

Core Technical Advantages

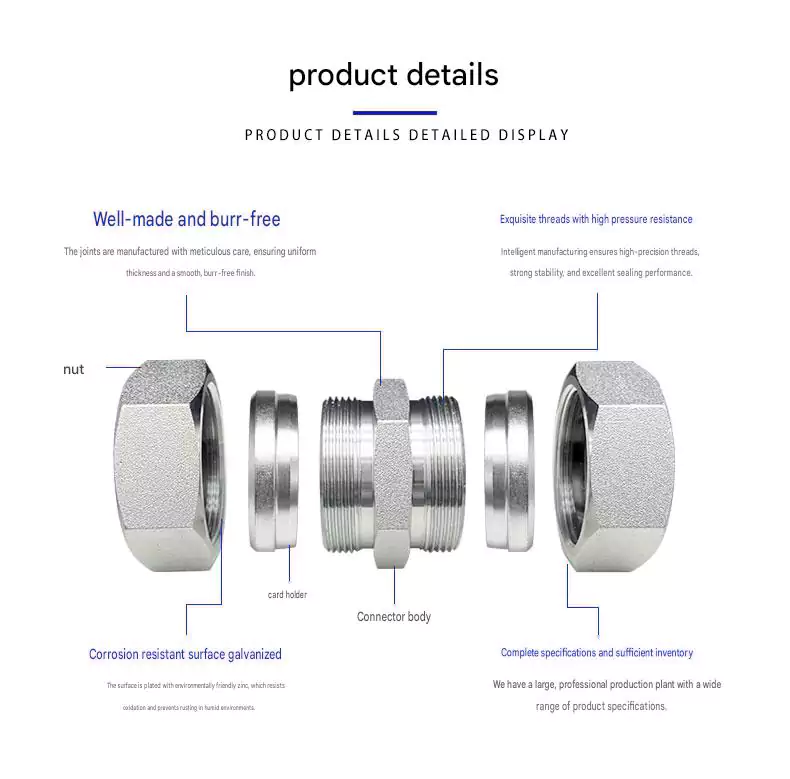

Double-Grip Sealing Mechanism: Front ferrule creates primary metal-to-metal seal; rear ferrule provides secondary sealing and anti-vibration locking -- eliminating leakage risks under extreme conditions.

Superior Material Selection: 304 stainless steel for general corrosion resistance; 316L for marine, chemical, and high-salinity environments.

Complete System Compatibility: Fully interchangeable with standard ISO 8434-1 and SAE J514 fittings -- no pipeline modification required.

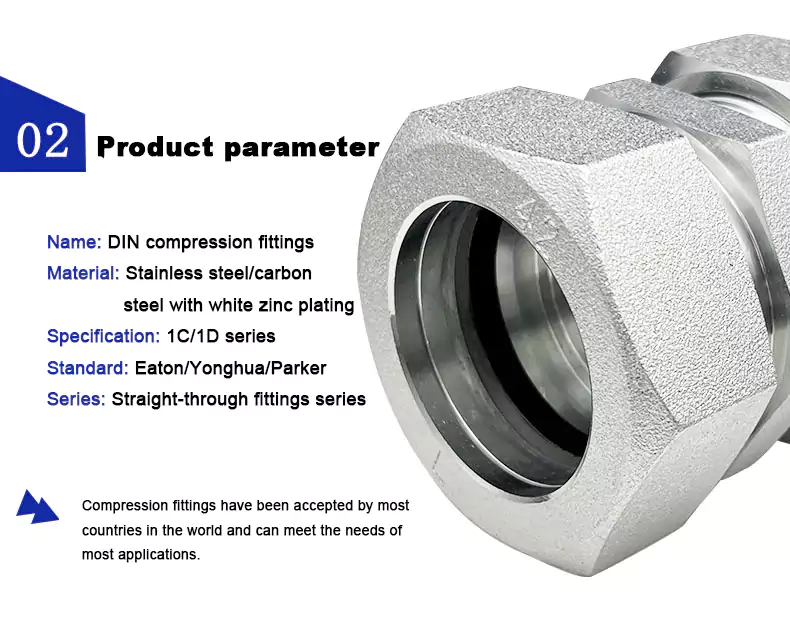

Technical Specifications

Application Areas & Cases

XYOON Ferrule Hydraulic Fitting are widely used in fields with stringent safety requirements:

Industrial Automation: CNC machine tool hydraulic stations, robotic arm pipeline packages.

Construction Machinery: Hydraulic transmission systems for excavators and cranes.

Energy & Chemicals: Instrument piping in petroleum refining and natural gas transportation.

Rail Transit: Braking control systems for high-speed rail and subways.

Why Choose US?

Unlike standard off-the-shelf fittings on the market, XYOON focuses on non-standard customization and complex working condition solutions.

Technical Accumulation: With 15 years of industry experience, our engineering team can provide selection advice and drawing optimization tailored to specific customer needs (e.g., ultra-high pressure, special media).

Cost-Performance Advantage: By eliminating middlemen, we supply directly to global end-users and system integrators.

Product Complete Compliance Certification Explanation

1. Global Fluid Industry Standards Compliance Qualifications

The entire joint structure, thread size, and sealing stroke strictly conform to the ISO 8434-1 and SAE J514 industry standard specifications. For the same specification, it can be interchanged and assembled with mainstream brands of overseas steel pipes and sleeves. When exporting to Europe, the Middle East, and Southeast Asia, there is no need to adjust the pipeline design. It can smoothly pass the factory acceptance and customs qualification verification of overseas factories.

2. Third-party Operating Condition Performance Test Report

Each batch of Ferrule Hydraulic Fitting has completed high-pressure holding pressure tests, high and low temperature cycle durability tests, and alternating vibration sealingity tests. The 316 stainless steel style can provide third-party neutral salt spray test documents, meeting the requirements of project bidding materials for chemical and marine high-corrosion environments. All test data can be provided for the corresponding batch original products.

3. System and Safety Certification Endorsement

The production factory holds the ISO9001 quality management system certification, and the entire process of CNC processing is closed-loop controlled; the finished products obtain the CE mechanical safety certification, complying with the EU fluid equipment safety access terms, and can be packaged and delivered with a complete set of qualification documents for overseas complete machine export customers.

4. Material Traceability Guarantee

The stainless steel raw materials can provide original factory material certificates and furnace number traceability sheets. There are two base materials: 304 general type and 316L acid and alkali resistant type. They can meet the material control requirements of procurement projects such as food and pharmaceuticals, and offshore platforms.

Layered warranty and detailed post-sale procedures

1. Standard warranty period and coverage

For Ferrule Hydraulic Fitting, the original factory provides a 12-month warranty under the conditions of pre-installation, matching of pipe materials, and rated pressure operation. The warranty period starts from the date of customer receipt of the goods. Defects in raw materials, deviations in thread processing, and non-compliance of factory sealing performance leading to leakage will be covered for free with the replacement of a brand-new joint component.

2. Clear delineation of warranty exemption scenarios

Scraping of pipe cut edges, scratches on pipe walls, long-term operation at rated pressure, repeated disassembly and repeated use of ferrules, and sealing failure caused by excessive torque and deformation are not covered under the free warranty; Standard pre-installation specifications are provided synchronously before sale to reduce human-induced faults at the source.

3. Pre-sale technical support services

Multiple specifications of samples can be sent for on-site measurement of customer's working conditions. Technicians will provide an exclusive selection plan based on the medium, pressure, and vibration intensity; Customized drawings are supported for non-standard special-shaped threads, extended straight-through, and special-angle three-way joints, and processing drawings confirmation is provided simultaneously.

4. Special cross-border post-sale support

English-speaking dedicated technical liaison personnel are equipped. Responses to inquiries about pipeline leakage, pre-installation operation, and specification matching will be provided within 24 hours. Standard models are always in stock, and small batches of spare parts can be directly sent in separate packages across borders to shorten the production line's downtime waiting period. Long-term support for the main equipment manufacturer allows for reserved safety stock to ensure stable delivery during peak seasons.

Introduction to Customer Segmentation in the Global Market

1. Mature Industrial Market in Europe

Customers in Germany, Italy, and the UK mainly purchase automated machine tools and rail transit brake pipe fittings. They prefer the standard 316L stainless steel models and have extremely high requirements for product size consistency and complete inspection qualifications. They also place long-term stable bulk orders for standard-sized connectors for pre-installation in the complete machines.

2. Infrastructure Manufacturing Market in Southeast Asia

Customers in Vietnam, Malaysia, and Indonesia focus on construction machinery and injection molding hydraulic stations. They also consider both spot small-batch replenishment and full-container wholesale. Their purchases lean towards the cost-effective 304 stainless steel base models, which are suitable for the local small and medium-sized pipe processing factories' pipeline renovation business.

3. Oil and Heavy Industry Market in the Middle East

Customers in Saudi Arabia and the United Arab Emirates mainly focus on oil extraction and port lifting equipment high-pressure pipe lines. The working conditions are mostly high vibration, sand and dust, and high-temperature. The double-bursting sleeve high-pressure models account for a high proportion of shipments. They have strict bidding requirements for product anti-vibration, corrosion resistance performance, and complete third-party inspection reports.

4. Main Market for Host Machines and Maintenance Accessories in China

Large construction machinery factories and hydraulic system integrators in China provide long-term complete machine supply. Local distributors of pipe lines for maintenance focus on mixed-configuration spot purchases of multiple specifications for immediate replacement of pipe line connectors for equipment after-sales. Spot supplies can be quickly allocated and handled for urgent orders in multiple locations.

5. Emerging South American and Australian Markets

The demand for mining machinery in South America and agricultural hydraulic equipment in Australia is increasing year by year. Customers value the product lifespan and the timeliness of cross-border spare parts replenishment. They prefer to choose source manufacturing manufacturers that can provide stable long-term supply and have a fast response time for after-sales services.

FAQ

Q1: How often should I inspect or maintain the Ferrule Hydraulic Fittings after installation?
A: One of the biggest advantages of our compression fittings is their low maintenance nature. Under normal operating conditions, they do not require periodic re-tightening (unlike traditional flare fittings). However, as part of routine safety checks, we recommend visually inspecting the ferrule edges for signs of severe corrosion or physical damage every 6-12 months.

Q2: How do I check if a compression fitting is properly installed?
A: Follow these verification steps:
1. Confirm the tubing is fully inserted to the bottom of the fitting body.
2. Check the "witness gap" between the nut and body is visible (not closed).
3. Ensure no leaks occur under pressure testing.
4. Verify ferrules show visible bite marks on the tube surface (after disassembly check).

Q3: What are common causes of leaks in compression fittings?
A: Leaks often result from:
- Improper tubing cut (burred, angled, or too short).
- Damaged or misaligned ferrules.
- Incorrect tightening torque.
- Incompatible materials (e.g., tubing corroding).
- Vibrations loosening nuts over time.
