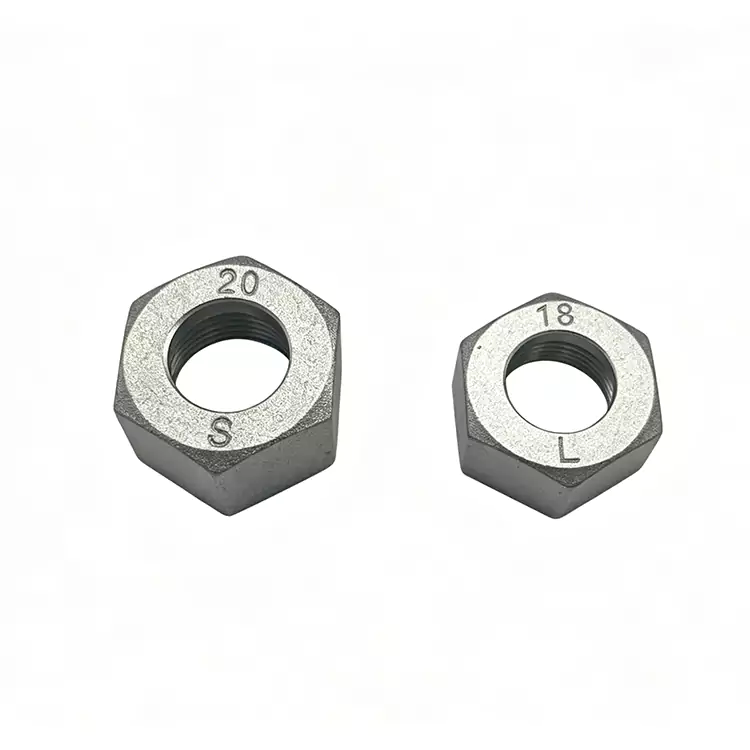

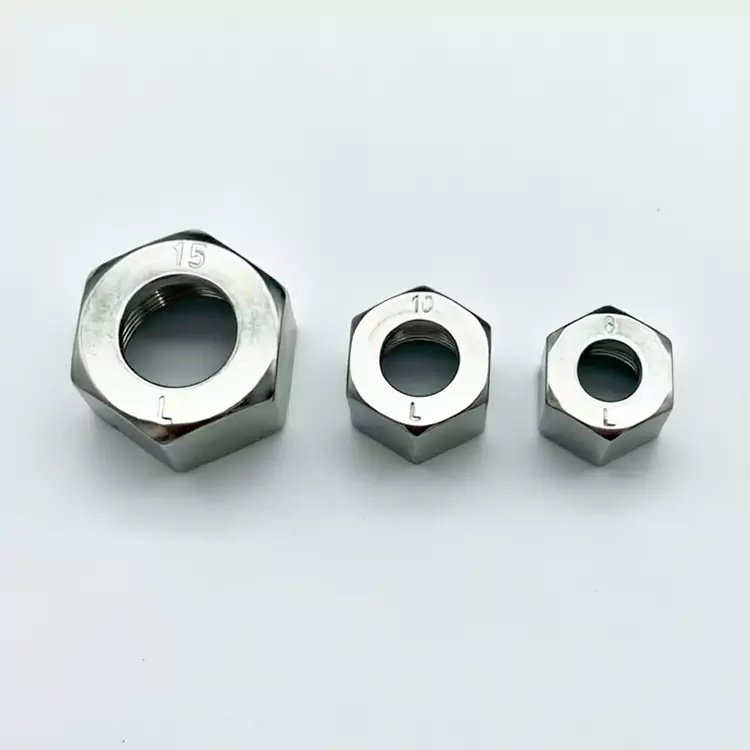

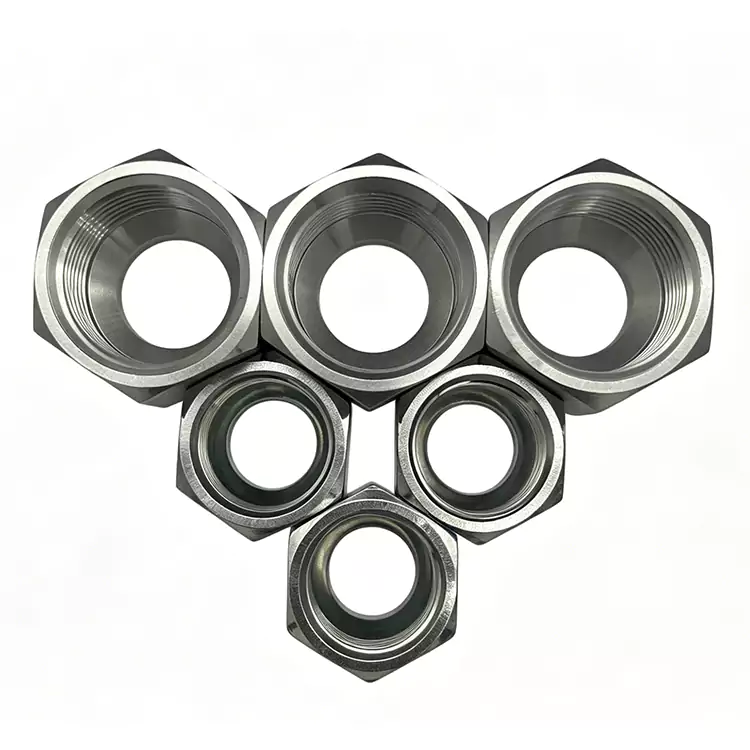

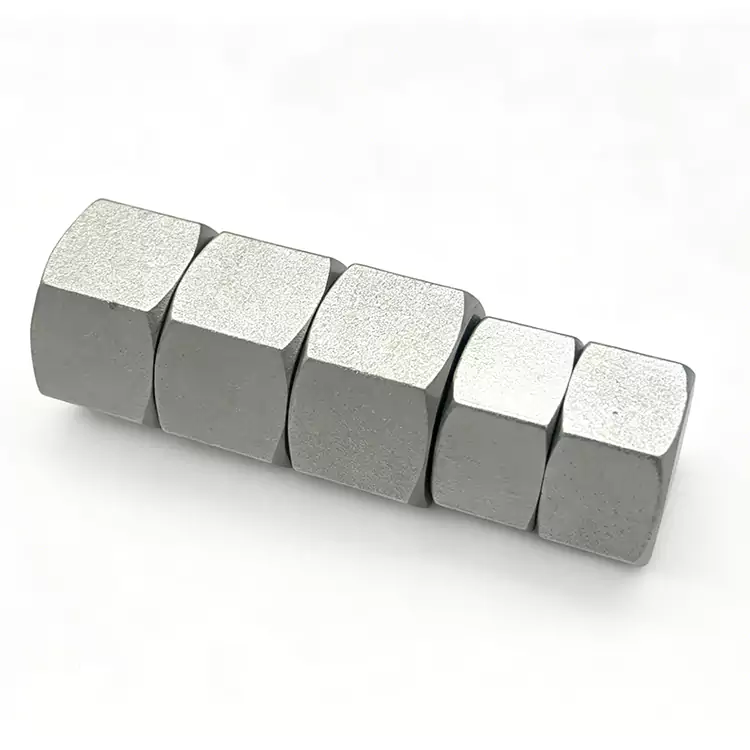

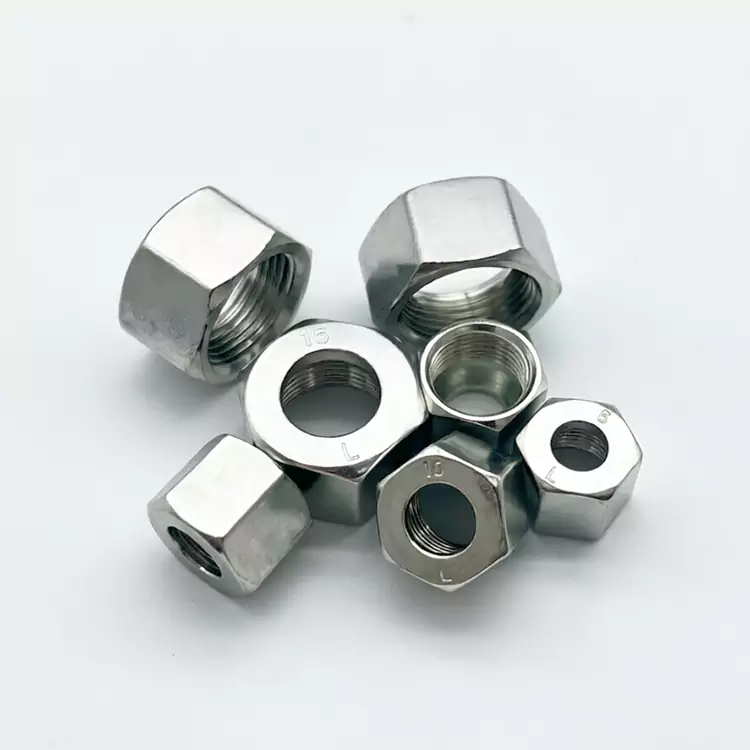

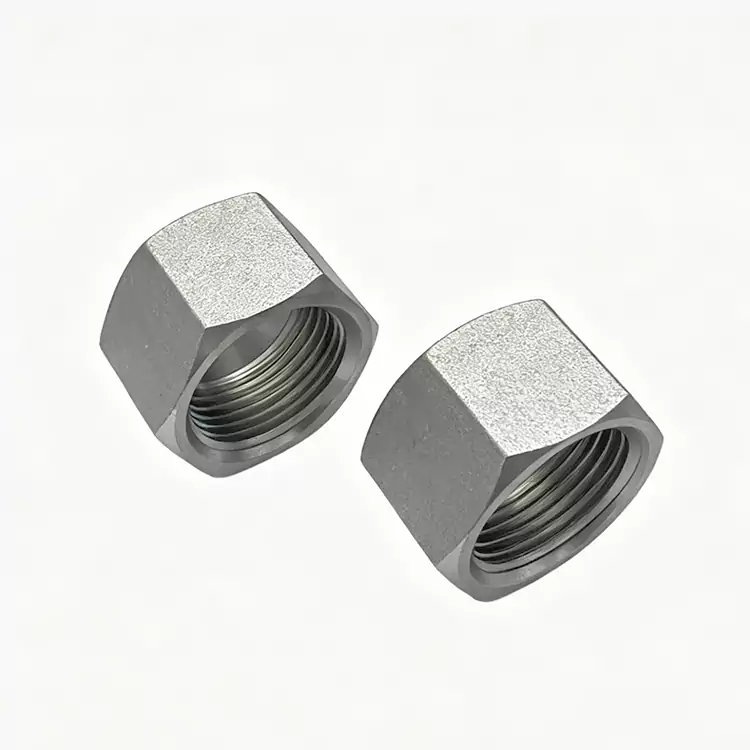

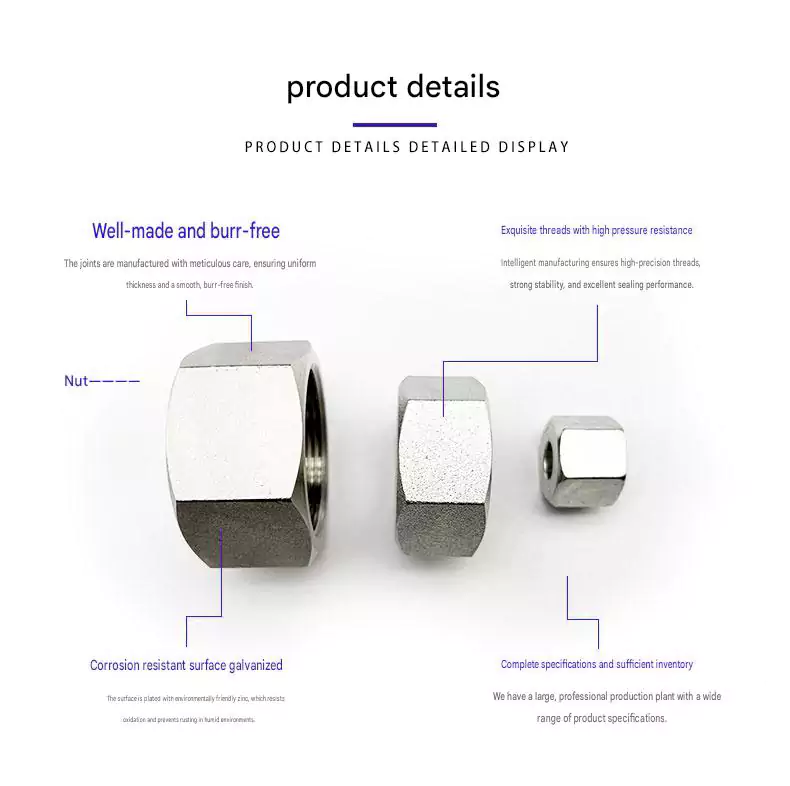

Precision Hydraulic Ferrule Nut

Precision Hydraulic Ferrule Nut is a high-precision fastening component for high-pressure hydraulic pipeline systems. It is manufactured through precise cold forging technology, with an overall tolerance controlled within ±0.02mm. The product is available in two material series: carbon steel and stainless steel. It strictly follows international pipeline standards such as DIN and ISO, and can achieve zero leakage rigid connection of the pipeline under a 63MPa high-pressure condition. It is compatible with the factory's ferrule pre-installation equipment, has high assembly accuracy matching, supports batch wholesale and OEM customization processing, and is widely applicable to various industrial hydraulic pipeline matching and replacement scenarios such as injection molding machinery, construction machinery, wind power equipment, etc.

Product Function and Advantages

The Precision Hydraulic Ferrule Nut is an indispensable core fastening component in the hydraulic pipeline connection system. It is used in conjunction with the cap and the joint body. By applying axial compressive force when tightening the nut, the cap undergoes elastic deformation and tightly fits onto the outer wall of the steel pipe. At the same time, the outer conical surface of the cap closely adheres to the inner conical surface of the joint body, thereby achieving a non-welded, high-strength, and highly-sealed rigid connection between the steel pipe and the joint.

Different from traditional welded connections, ferrule nuts require no hot work. The installation process is simple and fast, and they can be repeatedly disassembled without damaging the pipeline. They effectively avoid problems such as weld slag contamination, pipeline deformation and stress concentration caused by welding, making them the mainstream solution to replace welded connections in modern high-pressure hydraulic systems.

Detailed Technical Specifications

Core Application Fields

Injection Molding Machine Industry: Pipeline connections for hydraulic power units, mold clamping mechanisms and injection mechanisms
Engineering Machinery Industry: Hydraulic systems of excavators, loaders and cranes
Wind Power Industry: Hydraulic pitch systems and yaw systems of wind turbines
Shipbuilding Industry: Marine hydraulic steering gears, windlasses and hatch cover hydraulic systems
Metallurgical Industry: Hydraulic pipelines of steel rolling equipment and continuous casting equipment
Air Compressor Industry: Oil-gas separation systems and cooling systems of screw air compressors

Standard Compliance and Factory Quality Inspection Instructions

This Precision Hydraulic Ferrule Nut is produced in full accordance with the international unified standards of DIN 2999, ISO 8434, and ISO 8437-1. The thread pitch, inner and outer diameter dimensions, and assembly tolerances are all standardized and unified. It can be fully interchangeable and compatible with mainstream global brands of hydraulic connectors and pipeline accessories. No secondary drilling, threading modification, or adjustment is required at the customer's site. It can be directly connected and assembled, significantly improving the efficiency of engineering installation and equipment maintenance.

The factory strictly controls the production process through the ISO9001 quality management system. Each batch of products undergoes hardness testing, full inspection of thread tolerances, and high-pressure sealing simulation tests to ensure no defective products are shipped in batches. Customized factory inspection reports, material traceability certificates, and compliance qualification documents can be provided to meet the needs of overseas customers for customs clearance, factory inspection, project file archiving, and acceptance.

On-site Operation Norms and Daily Maintenance Suggestions

During assembly, a segmented pre-tightening method must be adopted. It is prohibited to forcefully tighten all at once to avoid thread slippage, nut deformation, or insufficient pre-tightening that leads to equipment vibration and loosening. At the same time, standard wall thickness steel pipes must be matched. Thin or thick non-standard pipe materials will cause the sleeve to not fit tightly, resulting in unstable sealing and hidden leakage problems.

During daily equipment inspections, the focus is on checking the tightening status of nuts at positions with mechanical oscillation and high-frequency vibration. Regularly clean the oil stains, dust, and impurities on the thread surface to prevent long-term accumulation of corrosive media that causes thread jamming and rusting. For equipment pipelines that have been idle for a long time, protective measures for preventing moisture and rust at the joints need to be taken to avoid difficulties in disassembly and assembly in the future.

Warranty Policy and Full Cycle After-sales Guarantee

Under the conditions of proper installation, matching of standard pipes, and rated pressure operation, our Precision Hydraulic Ferrule Nut enjoys a 12-month original factory warranty. Sealing failure, thread damage, and assembly faults caused by raw material defects, excessive processing tolerances, or factory performance deficiencies can all be replaced or supplemented for free.

Damage to the parts caused by overpressure conditions, pipe mismatch, violent disassembly by humans, or unauthorized modification is not covered by the warranty. Before sale, free selection of working conditions and technical guidance on material matching can be provided to avoid purchasing and usage risks at the source.

Frequently Asked Questions (FAQ)

Q1: Can Precision Hydraulic Ferrule Nuts be reused?
A: Under correct installation and disassembly conditions, ferrule nuts can be reused, but it is recommended to replace the ferrule every time to ensure sealing performance.

Q2: How does the working pressure of ferrule nuts vary with different pipe sizes?
A: The working pressure is primarily determined by the steel pipe wall thickness and material, not the ferrule nut itself. Generally, smaller pipe diameters can withstand higher pressures.

Q3: How to install a ferrule nut correctly?
A: - Ensure the tube end is square, burr-free, and clean.
   - Slide the nut and ferrule over the tube in the correct order.
   - Insert the tube fully into the fitting body.
   - Tighten the nut in stages: hand-tighten → pre-tighten → final torque (use a torque wrench).
   - Check ferrule engagement (no axial movement).

Q4: What are the reasons for the locking or jamming of the threaded nut during installation?
A: The main causes are residual impurities on the threads, excessive one-time tightening force, and mismatch in component specifications. Before installation, it is necessary to clean the thread stains and use a segmented pre-tightening method for assembly. The nuts of our factory have high thread precision and good surface finish, which can significantly reduce the probability of repeated disassembly jamming and thread locking.

Q5: Can carbon steel sleeve nuts be directly used in outdoor humid environments?
A: It is not recommended for long-term use. The carbon steel material has weak resistance to moisture and rust prevention. Outdoor high-humidity and rain environments are prone to oxidation and rust, making it difficult to disassemble and reducing the sealing stability. For outdoor and humid conditions, 304 or 316L stainless steel models are preferred. They are more stable and durable to use.

Q6: Are the sleeve nuts of our factory and our own sleeve pre-assembly machines fully compatible?
A: They are fully compatible. All sleeve nuts are calibrated and tested in synchronization with our pre-assembly equipment. The pre-squeeze stroke and assembly tolerance are highly consistent, achieving standardized pre-assembly effects, and ensuring uniform pipeline assembly accuracy, completely avoiding sealing deviations and leakage hazards caused by incompatible parts.
