JS Hydraulic Ferrule

Product Overview & Function

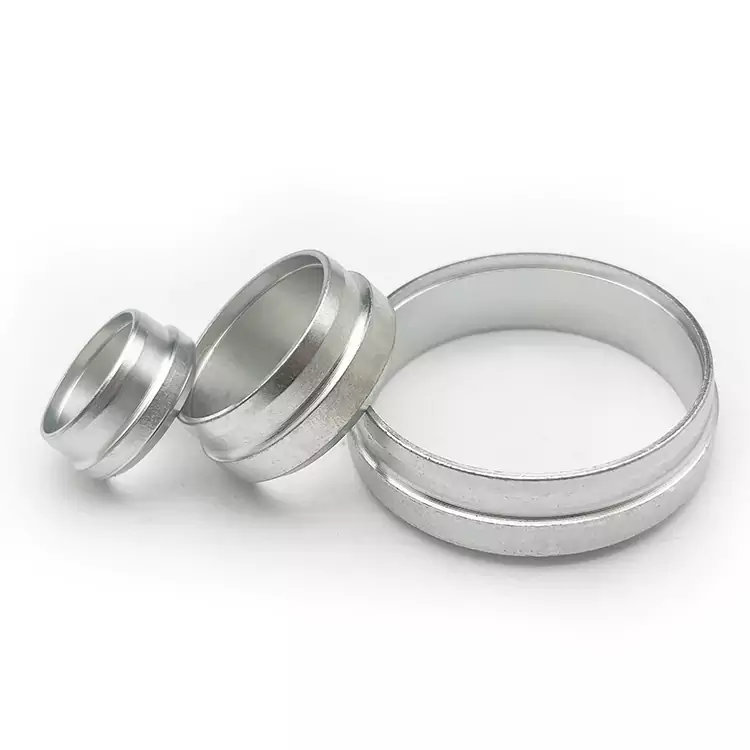

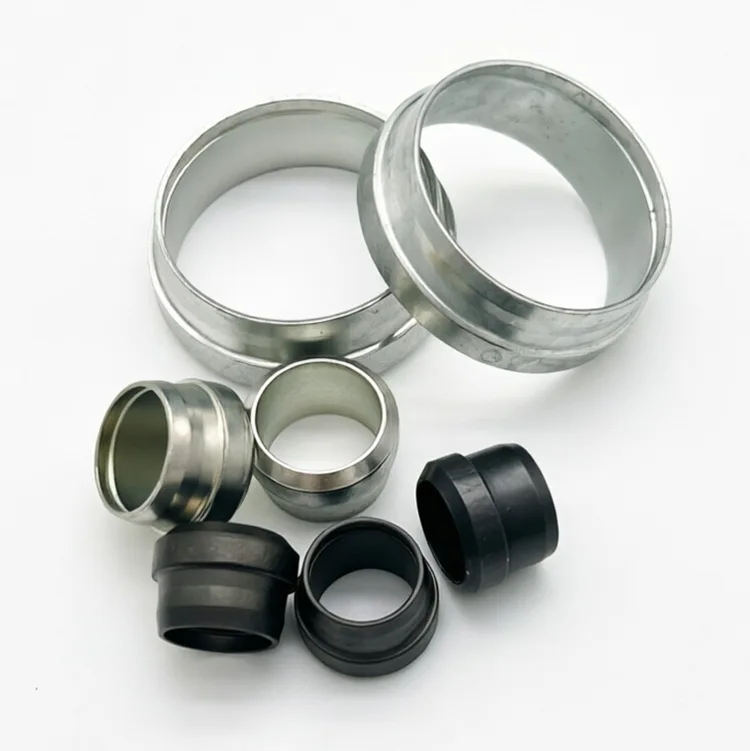

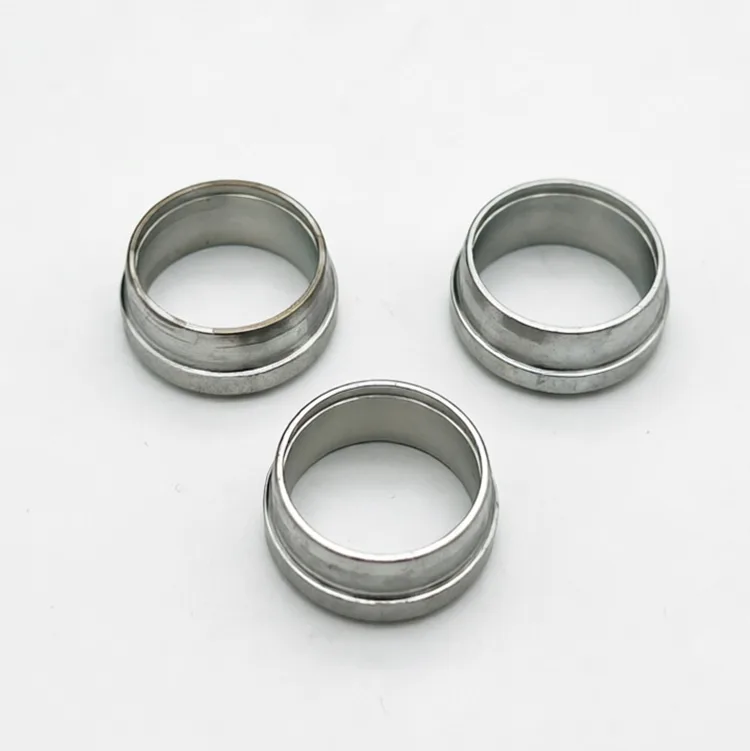

The XYOON JS Hydraulic Ferrule is a core locking and sealing component for JIS-standard bite-type tube fittings. Installed between the compression nut and the fitting body cone, it deforms and bites into the outer wall of seamless steel tubing when the nut is tightened, creating both a reliable mechanical grip and a pressure-tight static seal without welding, flaring or additional sealants.

It is fully interchangeable with mainstream JS-standard tube fittings on the market, and is widely used to connect hydraulic, pneumatic, lubrication and light chemical process lines, providing a fast, maintenance-friendly and vibration-resistant tubing connection solution.

Applications & Project Cases

Main application scenarios

Industrial hydraulic systems, machine tool lubrication lines, chemical process instrumentation, marine and offshore equipment, pneumatic control systems, semiconductor gas lines, food & beverage processing equipment.

Reference projects

South Korean fine chemical plant: 30,000 pieces of 316L JS ferrules supplied for analyzer sampling lines, resistant to weak acid and organic solvent media, passed 12-month on-site verification with zero leakage.

Japanese CNC machine tool OEM: Carbon steel JS Hydraulic Ferrule for full-machine hydraulic and lubrication piping, 8 million pieces supplied cumulatively, assembly failure rate below 0.2%.

Singapore marine maintenance distributor: Bulk supply of stainless steel ferrules for ship engine room pipeline retrofitting, salt-spray corrosion resistance meets marine grade requirements, reorder rate reaches 82%.

Full-process quality control

Incoming inspection: Raw material hardness, chemical composition and dimensional inspection per batch; unqualified materials are rejected.

Precision forming: CNC cold heading + precision turning processing, online automatic dimension detection for key surfaces.

Performance verification: Each batch undergoes pull-out force test, pressure cycle test and salt spray test to verify gripping strength and sealing reliability.

Traceability system: Each package is marked with batch number, traceable to raw material batch, production date and full inspection data.

FAQ

Q1: Which material should I choose, carbon steel or stainless steel?

A: Carbon steel (zinc plated) is recommended for general hydraulic and lubrication systems with cost priority. 304 stainless steel suits water-based media and general corrosion environments; 316L is required for seawater, chemical and high-purity gas applications.

Q2: What is the maximum working pressure?

A: Carbon steel ferrules support up to 25MPa; 304/316L stainless steel ferrules support up to 64MPa, depending on tube wall thickness and fitting rating.

Q3: Do you accept small quantity orders?

A: Yes. No MOQ for standard sizes; samples can be provided for testing. Custom sizes start from 500 pieces per specification.

Q4: What is the difference between single ferrule and double ferrule fittings?

A: Single ferrule (JS series) uses one ferrule that performs both sealing and gripping functions, suitable for medium-pressure applications up to 25-64MPa. Double ferrule uses separate front and back ferrules for sealing and gripping respectively, offering higher pressure ratings and better anti-vibration performance for heavy-duty applications.

Q5: Can JS Hydraulic Ferrule be used with tubing from other manufacturers?

A: Yes. Manufactured in strict accordance with JIS standards, our JS ferrules are fully interchangeable with mainstream JS-standard tube fittings on the market. We recommend using precision cold-drawn seamless steel tubes that meet JIS dimensional tolerances for optimal performance.
