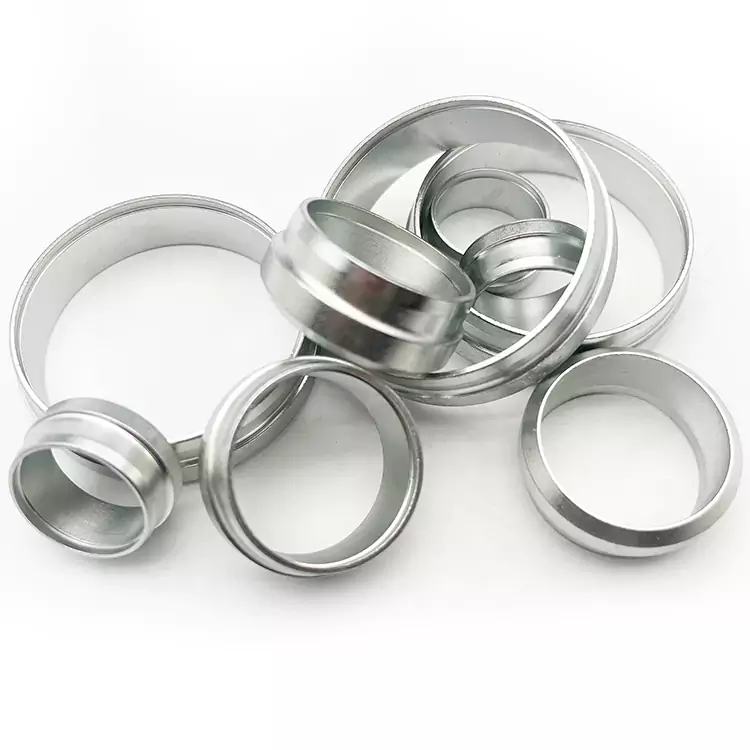

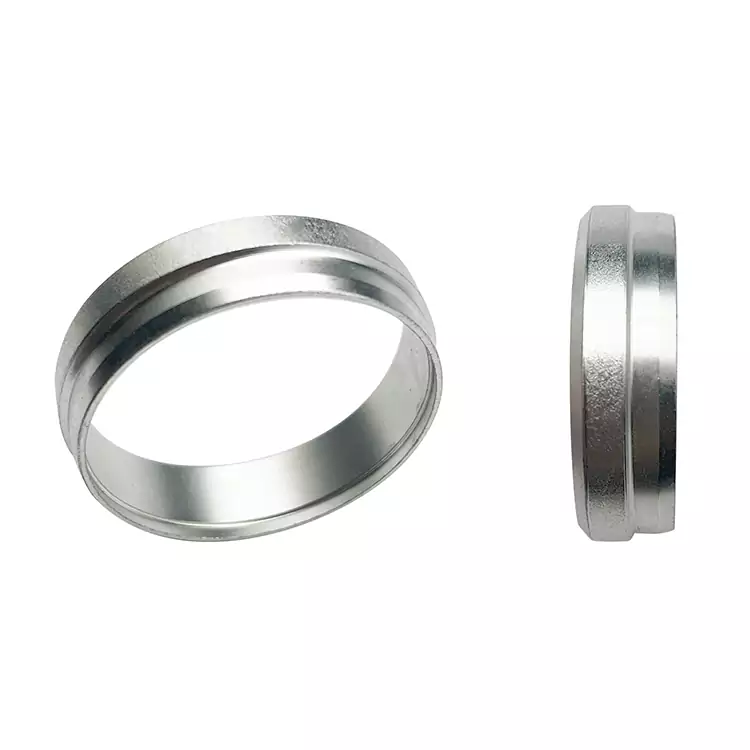

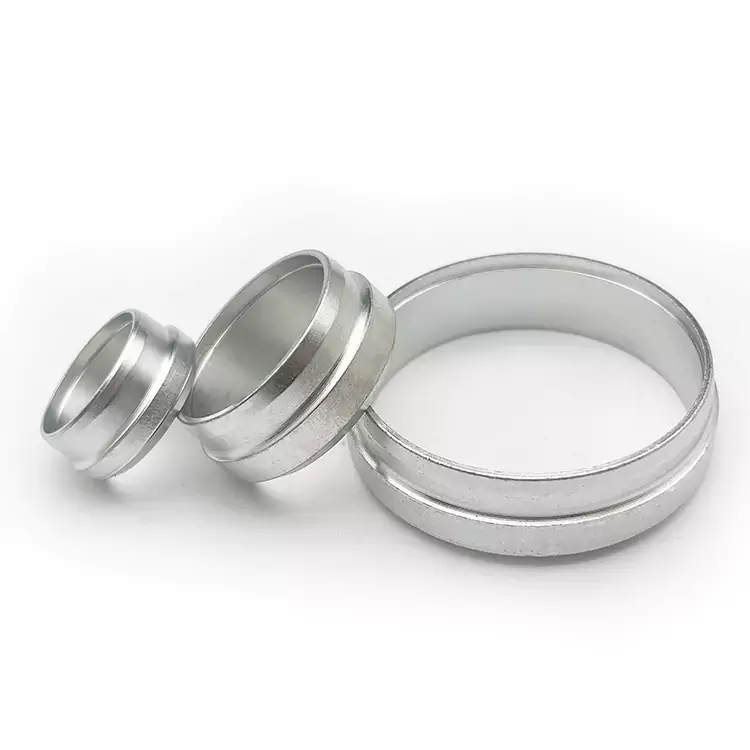

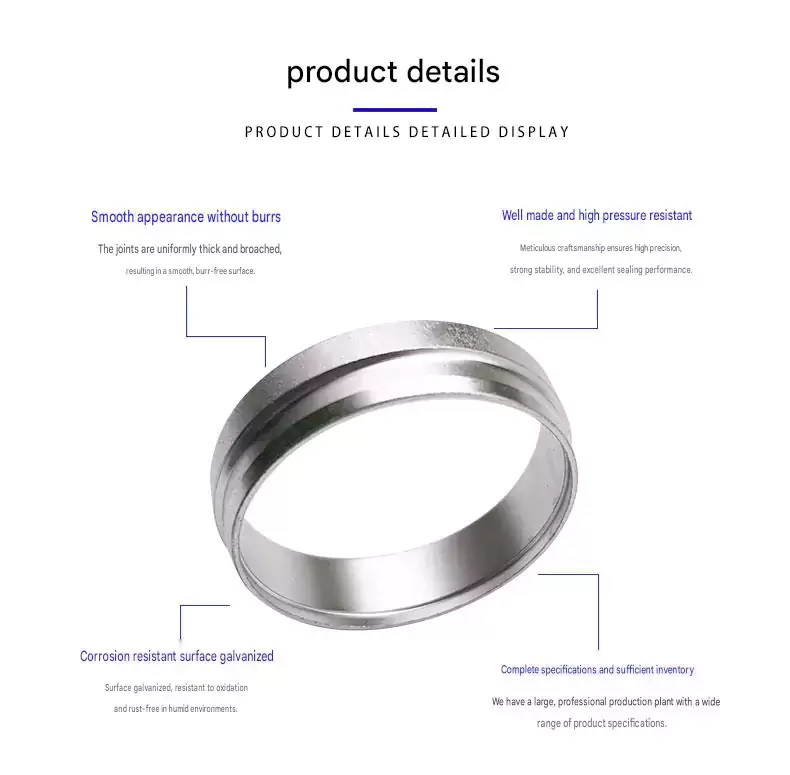

XYOON Double Edge Hydraulic Ferrule is a core connecting component for metal pipeline systems, independently developed and produced by XYOON. It adopts a dual-blade precision structure. When the nut is tightened, the front inner cutting edge is embedded into the pipe wall to form the first sealing line, and the rear outer edge is elastically deformed to fit the joint cone surface to form the second sealing line, realizing dual sealing and firm locking.
Dual Sealing & Leakage Prevention: Unique double-edge design forms two sealing structures, with zero leakage under long-term high pressure and vibration, solving the common leakage problem of single-edge ferrules.
High Pressure & Temperature Resistance: Nominal pressure up to 25MPa/40MPa, applicable temperature range -40℃ to 450℃, adapting to extreme working conditions.
Strong Material Adaptability: It has excellent corrosion resistance and is suitable for harsh environments such as marine and chemical industries.
Tool-free Quick Installation: No welding, no special tools, just tighten the nut to complete the connection, greatly improving construction efficiency and reducing labor costs.
Repeated Disassembly & Assembly: Good resilience, can be disassembled and reused many times without reducing sealing performance, convenient for later pipeline maintenance and transformation.
Wide Applicability: Suitable for pipes with diameter Φ6mm–Φ42mm, compatible with various thread standards such as G, NPT, ZG, meeting global pipeline connection requirements.
XYOON Double Edge Hydraulic Ferrule has passed a number of international authoritative certifications, and the whole production process is under strict quality control:
Certifications: ISO9001 Quality Management System Certification, EU CE Safety Certification, SGS Material Testing Certification.
Quality Control: Raw material incoming inspection → precision stamping forming → heat treatment strengthening → dimensional accuracy testing → sealing performance testing → finished product packaging. Each product undergoes 100% pressure test and air tightness test before leaving the factory, with a qualified rate of over 99.8%.
Customer puts forward demand (pipe parameters, pressure requirements, material, thread, application environment).
XYOON technical team conducts scheme design and provides 2D/3D drawings and quotation.
Customer confirms the scheme and signs the production contract.
Precision mold opening and mass production.
Full performance testing of finished products.
Packaging, delivery and after-sales tracking.
XYOON Double Edge Hydraulic Ferrules are widely used in hydraulic system manufacturing, construction machinery, chemical equipment, and shipbuilding industries. Our products are exported to:
Europe: Germany, Italy, UK, France, Russia
Southeast Asia: Malaysia, Thailand, Vietnam, Indonesia
Middle East: UAE, Saudi Arabia, Turkey
Our ferrule products are trusted by hydraulic fitting manufacturers and pipe processing enterprises across these regions. We support both standard and non-standard customization to meet diverse application requirements.
12-month warranty against manufacturing defects from date of shipment.
Technical support via email, phone, or video call for installation guidance and troubleshooting.
Batch traceability – each production batch is recorded with test data archived, enabling quick root-cause analysis if any quality issues arise.
Rapid resupply – standard sizes are stocked for immediate shipment; custom sizes lead time: 15-20 working days.
Sample service – available upon request for customer pre-approval before mass production.
Q1: What is the difference between single-edge and double-edge ferrule?
A: Single-edge ferrule forms only one sealing line, which may leak under high vibration or pressure spikes. Double-edge design creates two independent sealing barriers – the front edge bites into the pipe wall for primary sealing, and the rear edge seals against the cone surface for secondary sealing – ensuring zero leakage even under extreme conditions.
Q2: Can Double Edge Hydraulic Ferrule be reused after disassembly?
A: Yes. Thanks to its resilient material and precision heat treatment, it can be disassembled and reassembled multiple times without significant loss of sealing performance, ideal for maintenance and system modifications.
Q3: What materials are available?

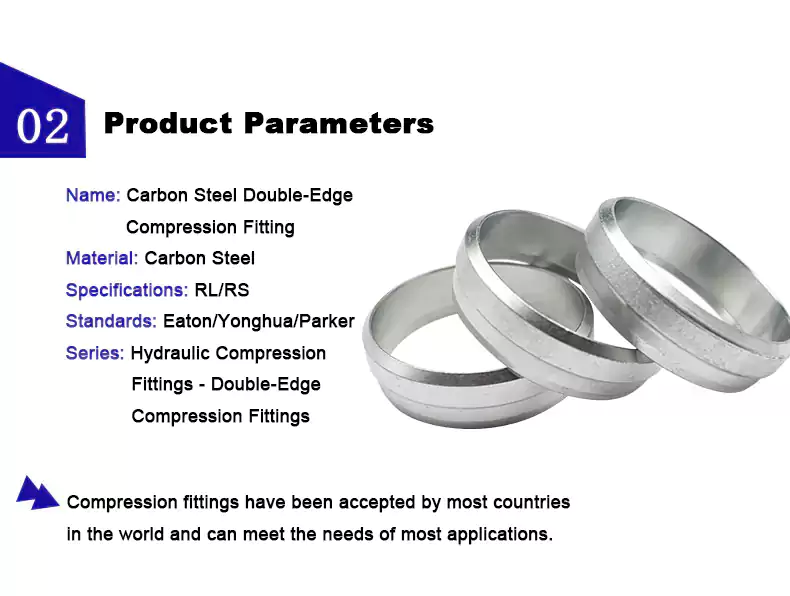

A: Standard material is carbon steel with surface treatment. Stainless steel (304/316L) is available for corrosive environments. Please specify your application when inquiring so our technical team can recommend the optimal material.
Q4: How do I select the right ferrule for my pipe?
A: We need three key parameters: ① Pipe outer diameter (Φ6-42mm), ② Working pressure requirement, ③ Thread standard (G / NPT / ZG) and size. Our technical team will confirm compatibility within 24 hours.
Q5: What is the MOQ and lead time for custom sizes?
A: MOQ for standard sizes: 100 pcs. Custom sizes: MOQ 500 pcs, lead time 15-20 working days after drawing approval. Sample service is available.
