Every hydraulic, pneumatic, or lubrication system requires rigid pipe installation. The correct installation and assembly of pipes not only improves system efficiency and prevents leaks but also enhances the overall appearance of the equipment. However, achieving a truly leak-free connection involves more than just tightening a nut — it requires a systematic approach from pipe layout to final pre-assembly.
At XYOON, we understand this challenge deeply. As a leading manufacturer of ferrule pre-assembly machines, EO-2 functional nuts, compression fittings, and other hydraulic pipeline connection components, we provide a complete solution that covers every stage of the pipe installation process.
According to XYOON's Rigid Pipe Installation Guidance, a well-planned pipe layout is the first step toward a reliable hydraulic system. Proper routing reduces stress on connections, minimizes vibration, and ensures easy access for maintenance. Our guidance covers key principles such as avoiding sharp bends, maintaining adequate support spacing, and allowing for thermal expansion.

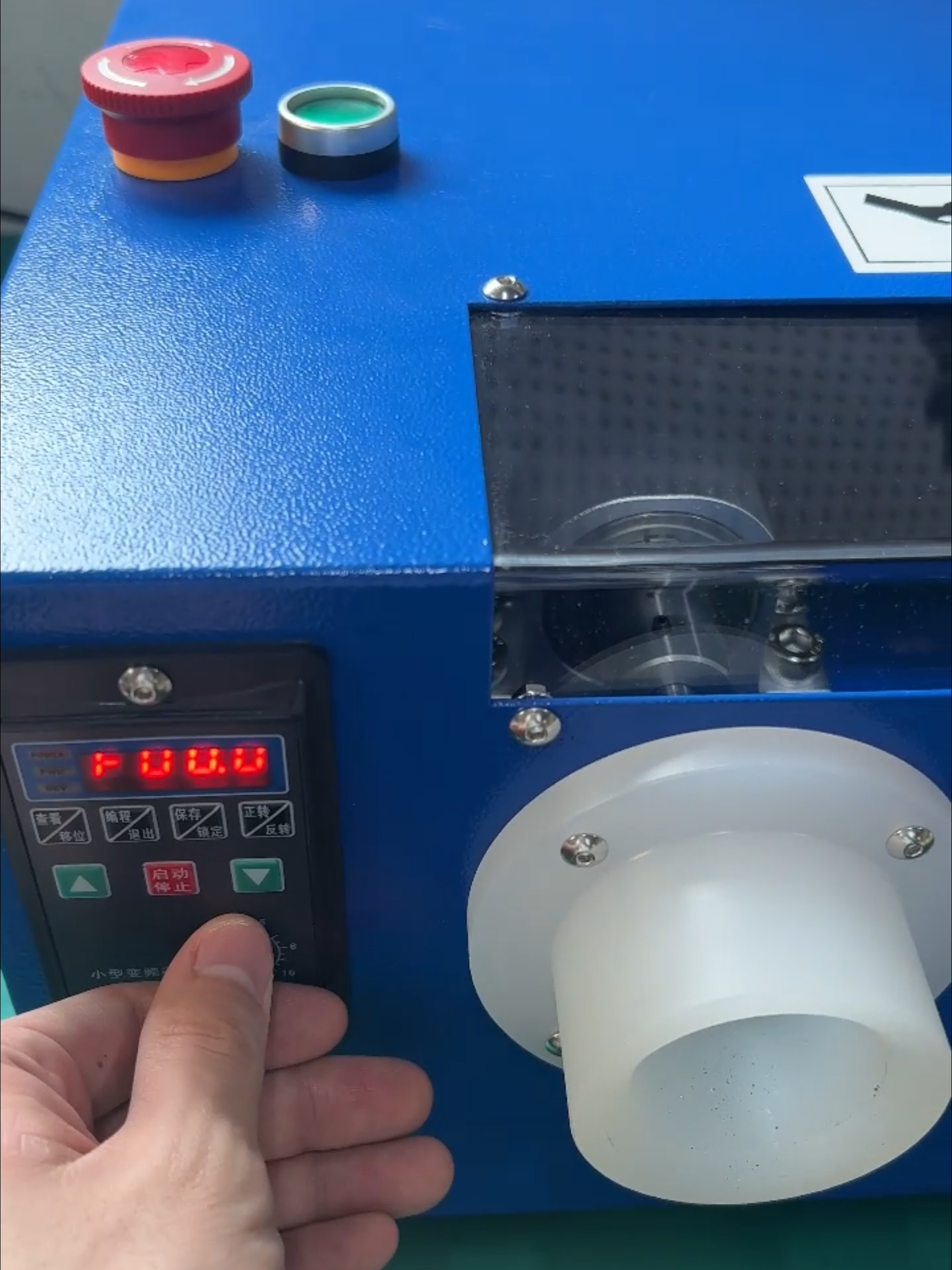

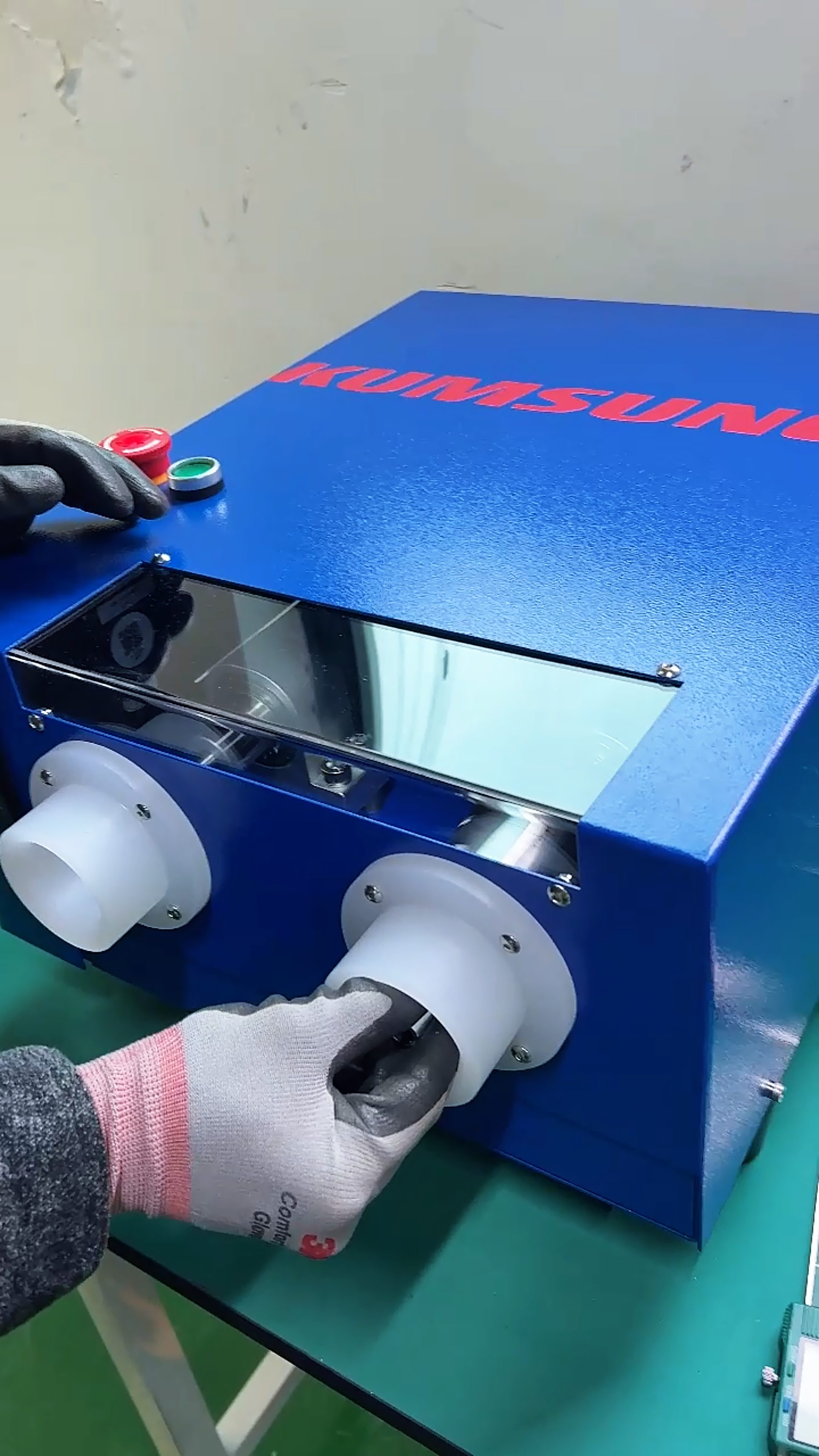

Before any connection can be made, the pipe ends must be properly prepared. XYOON's KC-C01 Steel Pipe Deburring Machine removes burrs, sharp edges, and internal/external flash in a single operation. The machine features a viewing window for real-time cutting observation, a speed control knob for adjusting cutter speed based on material and diameter, and a chip tray for collecting metal debris. This ensures a clean, smooth pipe end that is ready for pre-assembly.

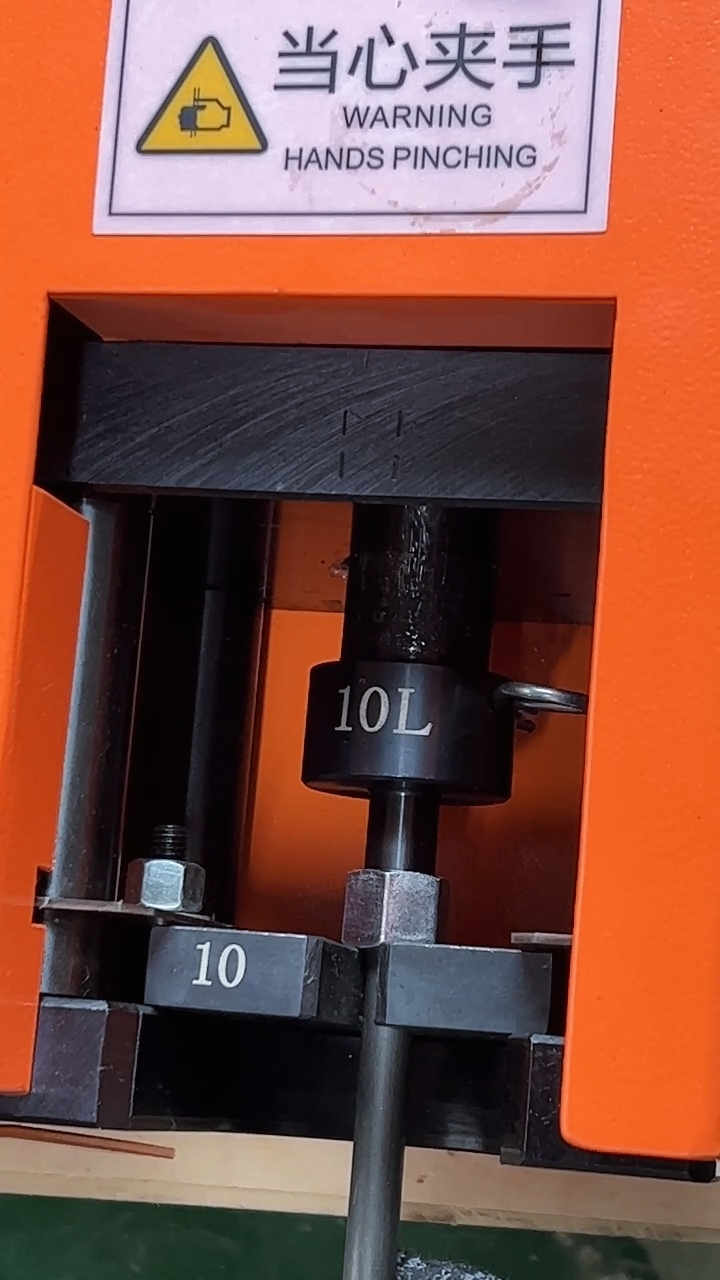

The heart of any bite-type fitting connection is the ferrule pre-assembly process. XYOON's KC-A01 (electric) and KC-A02 (manual) ferrule pre-assembly and flaring machines are designed to deliver consistent, high-quality results. Using precision molds made from imported mold steel with professional heat treatment, these machines ensure that the ferrule grips the pipe firmly while maintaining the ability to rotate freely — the two key indicators of a successful pre-assembly.
For applications requiring the highest level of leak prevention, XYOON's EO-2 functional nut incorporates a rubber sealing ring vulcanized onto a metal positioning ring. This elastic sealing principle means the seal improves with increasing pressure, providing exceptional reliability in high-pressure hydraulic systems.
For customers requiring flange connections, XYOON's KC-D90 Steel Tube Spinning Flaring Machine uses a cold rotary swaging process to create high-precision, smooth 37° or 90° flares. For the most advanced anti-leakage solution, the KC-WF42 Pipe End Extrusion Forming Machine utilizes walform tube end forming technology, which uniformly deforms the pipe without pitting or cracking, ensuring consistent quality and reliable sealing.
From pipe layout guidance to precision deburring, ferrule pre-assembly, and advanced tube end forming, XYOON provides everything you need to ensure leak-free hydraulic pipe installation. Our products are widely used in road transportation, aerospace, shipbuilding, rail transit, and industrial machinery — and they are all backed by our commitment to quality and customer satisfaction.
-
