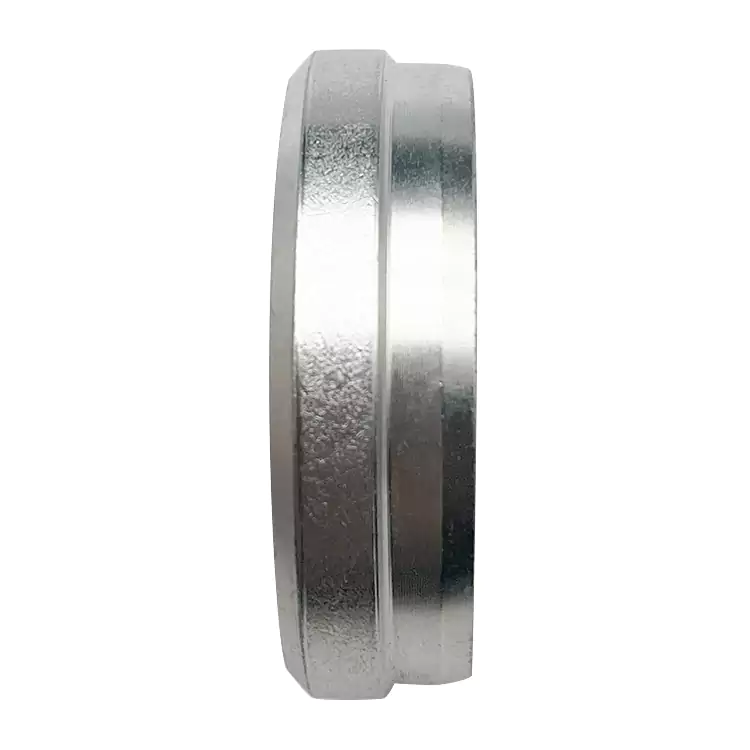

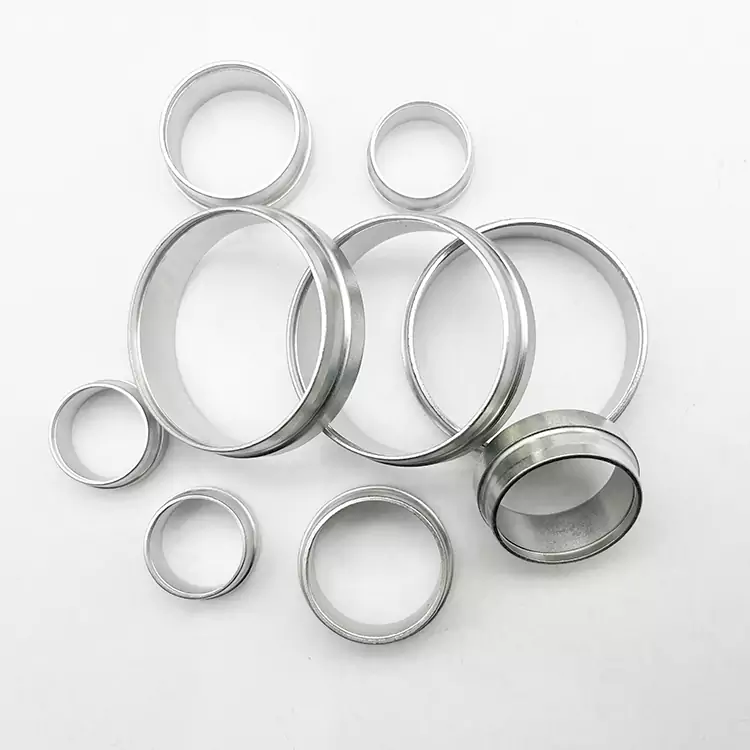

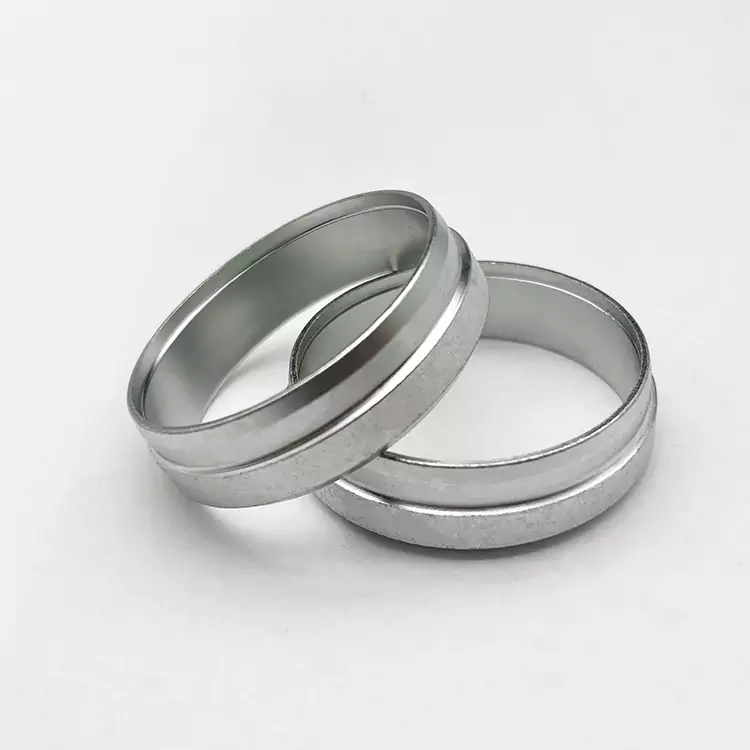

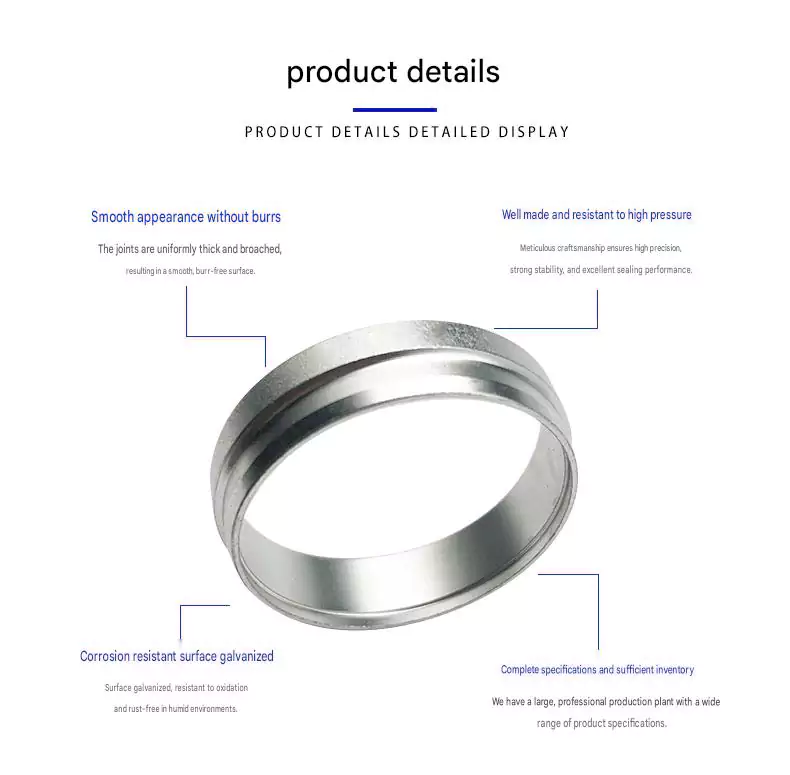

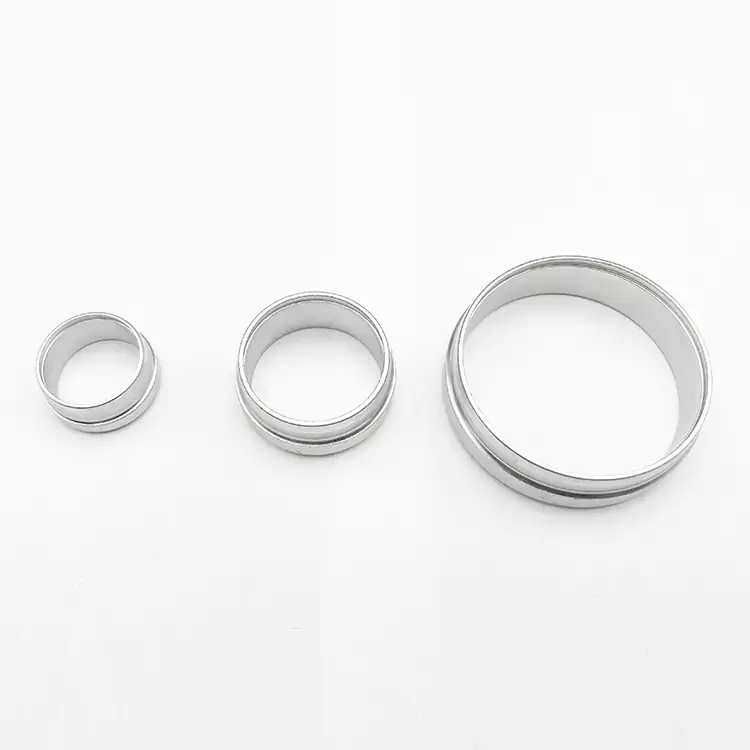

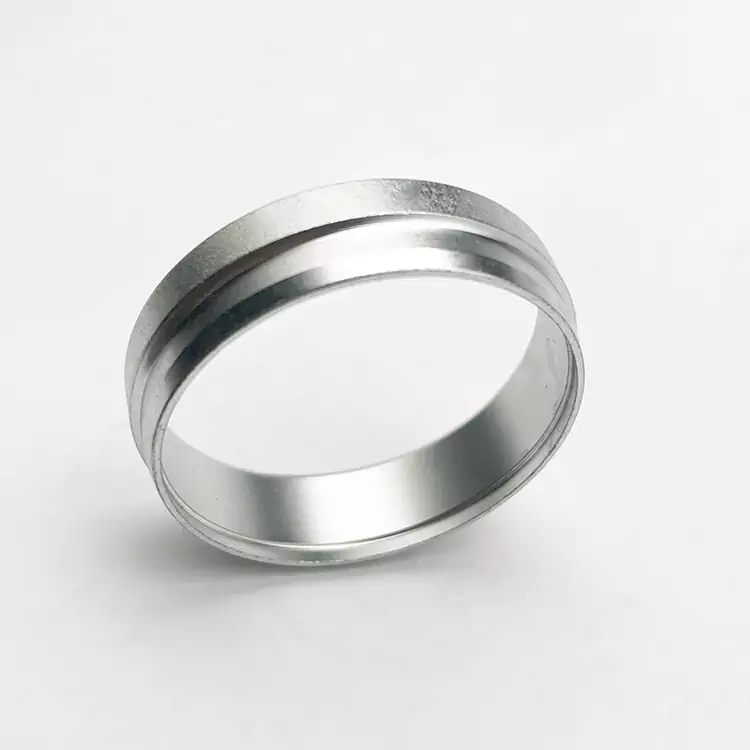

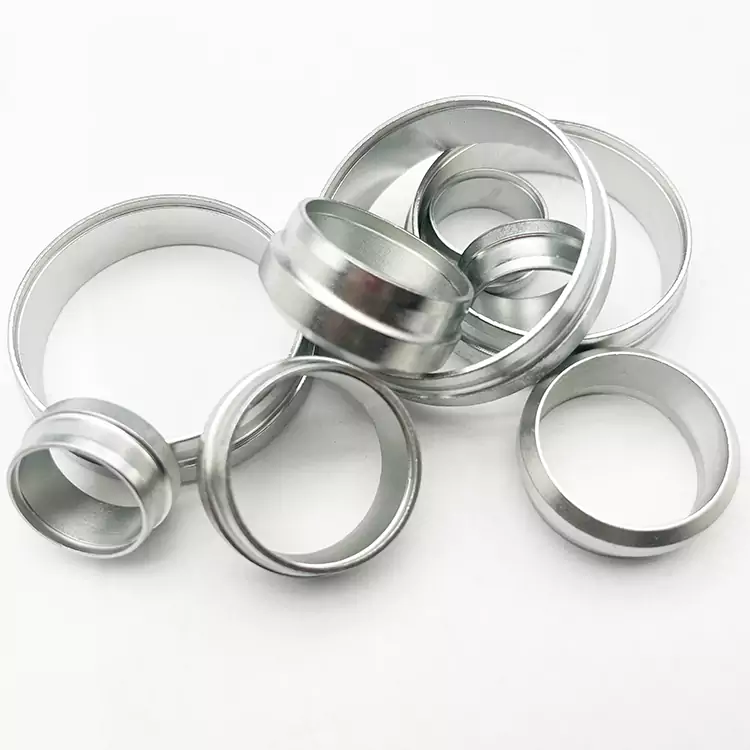

Carbon Steel Hydraulic Pipeline Ferrule

Manufactured under stringent quality controls, the XYOON Carbon Steel Hydraulic Pipeline Ferrule delivers cost-effective, leak-proof connections for high-pressure hydraulic systems. Featuring gradient hardness technology (HRC 45-50 cutting edge, HRC 30-35 rear section) and compliant with DIN 2999, ISO 8434, and SAE J514, it provides reliable sealing at up to 40MPa. Ideal for construction machinery, mining equipment, and agricultural machinery – where strength and value matter most.

What Is a Carbon Steel Hydraulic Ferrule?

A Carbon Steel Hydraulic Pipeline Ferrule is the core sealing component in compression-type hydraulic connections. It works in conjunction with a ferrule nut and fitting body. When the nut is tightened, the ferrule is compressed between the nut and the fitting body, causing it to deform radially and embed itself into the outer surface of the steel pipe. This creates a permanent, leak-proof metal-to-metal seal that can withstand high pressure, vibration and temperature fluctuations.

Unlike stainless steel ferrules, carbon steel hydraulic ferrules are made from high-quality 45# carbon steel, which offers higher tensile strength and better ductility at a lower cost. They are specifically designed for non-corrosive or mildly corrosive industrial environments where high strength and cost-effectiveness are the primary considerations.

Core Competitive Advantages

Patented Gradient Hardness Technology: Front cutting edge (HRC 45-50) ensures sharp penetration into pipes; rear section (HRC 30-35) provides superior elasticity and vibration resistance, eliminating common cracking and poor sealing issues.

100% Batch Consistency: Fully automated production lines and computer-controlled heat treatment ensure <3% deformation deviation across every batch, with 100% hardness and dimensional inspection.

Exceptional Anti-Fatigue Performance: Passes 500,000 pressure cycle tests (0-1.5× rated pressure) without leakage, perfect for heavy-duty mobile machinery.

Enhanced Corrosion Protection: Offers zinc-nickel plating with 500 hours of salt spray resistance, extending service life in humid outdoor environments.

Key Technical Specifications

Certification & Quality Assurance

XYOON Carbon Steel Hydraulic Pipeline Ferrules are produced under certified quality systems and internationally recognized standards:

Certifications Held:

ISO 9001:2015 – Quality management system certified

CE 2006/42/EC – EU machinery safety directive compliant

SGS – Material composition and mechanical properties verified

Quality Control at Every Stage:

Performance Commitment: Factory pass rate consistently above 99.7%. Each batch includes a complete inspection report for customer reference.

Global Market Presence

XYOON Carbon Steel Hydraulic Ferrules are widely specified by OEMs and aftermarket distributors across key industrial regions:

Europe – Germany, UK, France, Italy

Serving: Agricultural machinery, heavy equipment manufacturing

Southeast Asia – Thailand, Vietnam, Indonesia, Malaysia

Serving: Construction equipment, mining machinery assembly

Middle East – UAE, Saudi Arabia, Turkey

Serving: Oilfield equipment, industrial pipeline systems

China (Domestic) – Nationwide coverage

Serving: Construction machinery factories, hydraulic system integrators

We supply both standard DIN/ISO sizes and custom-engineered ferrule solutions for large-volume procurement programs. Export packaging available for international logistics.

Customization & Bulk Order Process

We support OEM/ODM customization and volume procurement for Carbon Steel Hydraulic Pipeline Ferrules with a transparent 5-step workflow:

Step 1 – Specification Submission

Provide: pipe outer diameter (Φ4-42mm), wall thickness, working pressure, quantity, and application environment.

Step 2 – Technical Assessment

Our engineering team reviews parameters and recommends optimal material grade and heat treatment profile.

Step 3 – Sample Development

Pre-production samples manufactured and sent for customer testing and approval.

Step 4 – Serial Production

Full-scale manufacturing with in-process inspections at each stage.

Step 5 – Quality Clearance & Dispatch

100% final testing, secure packaging with batch traceability, and on-time shipment.

Lead Time: Standard sizes – immediate dispatch from stock. Custom sizes – 15-20 working days after drawing/sample sign-off.

After-Sales Support & Warranty

Warranty Coverage: 12-month warranty against manufacturing defects from shipment date.

Technical Assistance: Installation guidance, ferrule selection advice, and troubleshooting via email, phone, or video call.

Batch Traceability: Full production records and test data archived for each batch – enabling rapid root-cause analysis if issues occur.

Supply Continuity: Standard sizes held in stock for immediate dispatch. Custom orders replenished within 15-20 working days.

Sample Service: Pre-production samples available for customer verification prior to full-scale ordering.

Quick Response: All inquiries acknowledged within 24 working hours. Technical proposals provided as per requirement.

Replacement Policy: Defective products confirmed as manufacturing faults will be replaced or refunded promptly.

FAQ

Q1: Will carbon steel ferrules rust?

A: Our surface treatments provide excellent corrosion protection. With proper maintenance, they can last for years even outdoors.

Q2: Are they compatible with other brands' fittings?

A: Yes, they are fully interchangeable with all standard DIN 2999 and ISO 8434 fittings.

Q3: Can Carbon Steel Hydraulic Pipeline Ferrules be reused?

A: No, they are designed for one-time use only to ensure reliable sealing.

Q4: How do I select the right ferrule for my hydraulic system?

A: We need three key parameters: ① Pipe outer diameter (Φ4-42mm), ② Working pressure requirement, ③ Wall thickness of your pipe. Our technical team will confirm compatibility within 24 hours.

Q5: What is the difference between carbon steel and stainless steel ferrules?

A: Carbon steel ferrules offer higher tensile strength and better ductility at a lower cost, making them ideal for non-corrosive or mildly corrosive industrial environments. Stainless steel is recommended for highly corrosive or marine applications. Our technical team can help you choose based on your specific working conditions.

Q6: What is the MOQ and lead time for bulk orders?

A: Standard sizes – MOQ 500 pcs, in-stock for immediate shipment. Custom sizes – MOQ 1,000 pcs, lead time 15-20 working days after drawing approval. Bulk order discounts available upon request.
