NBR Hydraulic Ferrule

NBR hydraulic ferrules are widely used in general industrial hydraulic systems, including construction machinery hydraulic circuits, hydraulic power unit piping, pneumatic control systems, and water treatment high-pressure lines. Their reliable sealing performance and excellent mineral oil resistance make them a standard choice for maintenance and retrofit applications across diverse industries.

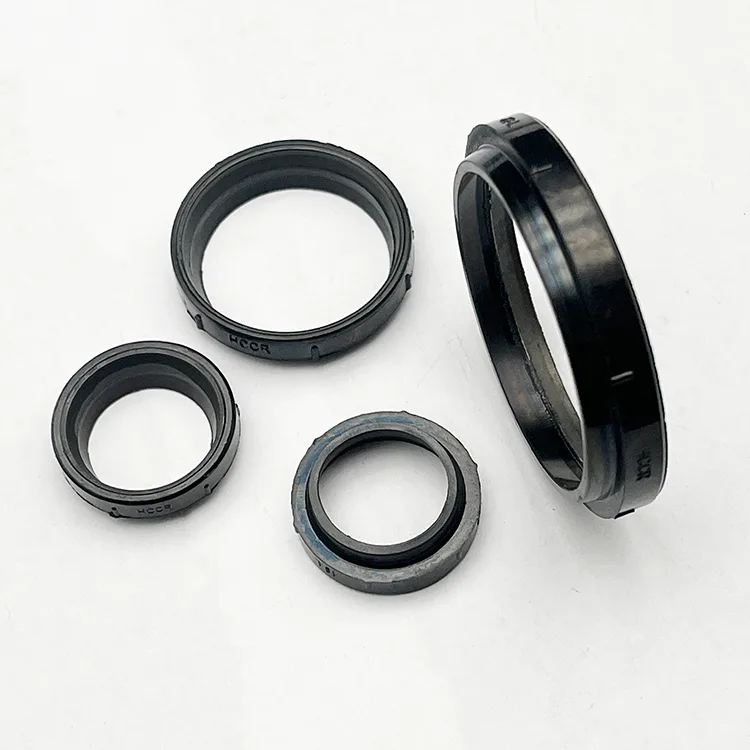

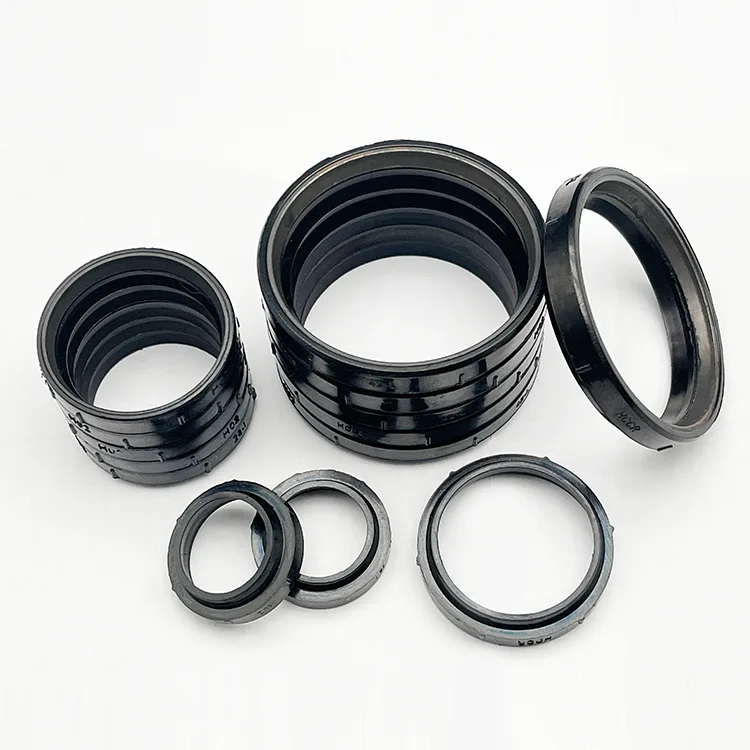

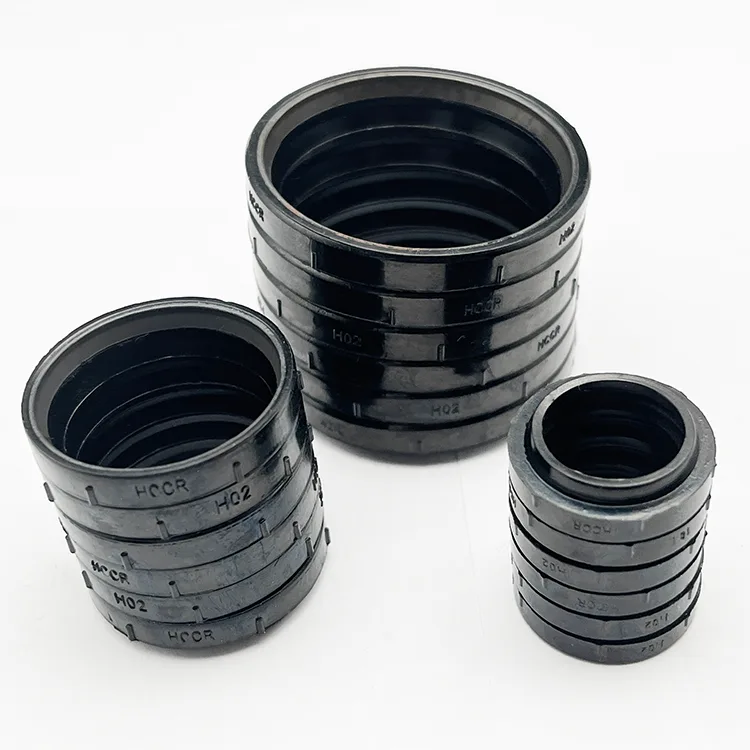

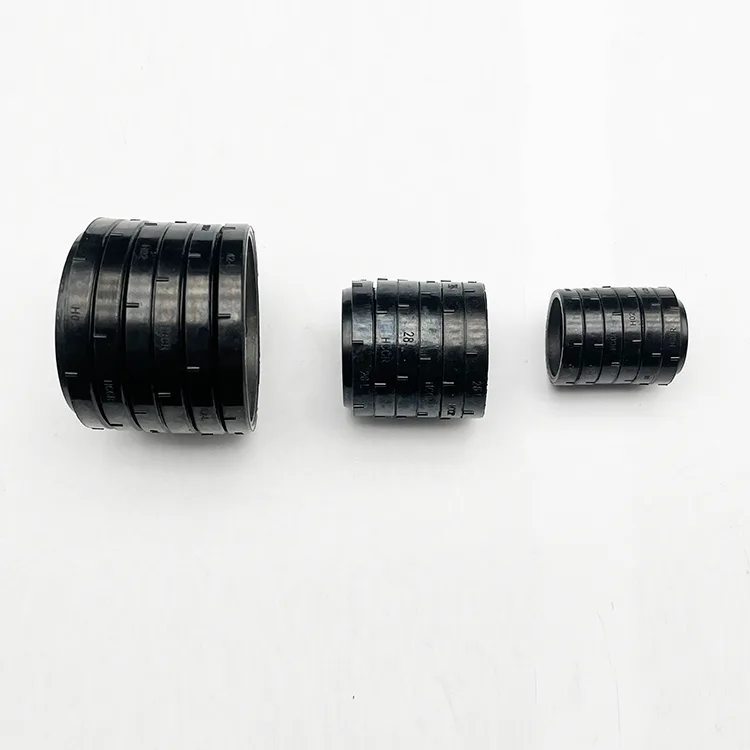

DIN standard compliant, XYOON NBR Hydraulic Ferrule is a precision-molded elastic sealing component for compression-type hydraulic tube fittings. Installed between the compression nut and fitting cone, it provides reliable radial static sealing for mineral hydraulic oil, lubricant, and compressed air systems. Operating temperature range -20°C to +100°C, available in sizes φ6 to φ42mm, with hardness customizable from 70 to 85 Shore A. Factory direct supply with sample testing and custom fabrication available.

Product Function & Working Principle

The NBR Hydraulic Ferrule is a precision-molded elastic sealing component used in compression-type hydraulic tube fittings. It is installed between the compression nut and the cone surface of the fitting body, working in conjunction with the metal ferrule to achieve radial static sealing of hydraulic lines.

When the nut is tightened, the NBR ferrule is compressed between the nut and the fitting cone, creating a resilient, leak-tight barrier that prevents fluid bypass along the thread path. This design is particularly effective for mineral hydraulic oil, lubricant, and compressed air systems, providing reliable sealing performance in standard industrial applications.

Unlike metal ferrules that rely on biting into the pipe wall, the NBR ferrule provides a flexible, forgiving seal that accommodates minor surface imperfections and thermal expansion, making it ideal for maintenance and retrofit applications where tube surface condition may vary.

Industries & Proven Project Results

Typical applications

Construction machinery export configuration, hydraulic power unit retrofitting, marine engine room piping, chemical process line upgrades, valve manifold assembly, pneumatic system conversion, water treatment high-pressure lines.

Verified customer outcomes

Middle East seawater desalination plant: SS316L adapters supplied for high-pressure RO system piping. After 18 months of continuous operation in a high-chloride coastal environment, zero pitting corrosion or seal degradation has been recorded.

After-Sales Support & Warranty

12-month warranty against manufacturing defects.

Technical support via email, phone, or video call.

Batch traceability – production records archived for each batch.

Rapid resupply – standard sizes in stock; custom sizes 15-20 working days.

Sample service – available upon request.

24-hour inquiry response.

Guidelines for Proper Use and Routine Maintenance

1. Precise Media Compatibility to Prevent Premature Failure

NBR hydraulic ferrules are designed for sealing applications involving mineral-based hydraulic oils, lubricants, and compressed air; prolonged contact with strong acids, strong alkalis, organic solvents, or high-temperature synthetic oils is strictly prohibited. Non-standard media or operating conditions can lead to swelling, hardening, cracking, and premature loss of sealing performance; please consult us for appropriate selection if operating conditions are complex.

2. Standardized Assembly to Eliminate Human-Induced Sealing Defects

During assembly, ensure that pipe ends are smooth and free of burrs and that the interior of the fitting is free of debris or oil residue. Slide the rubber ferrule onto the pipe evenly; twisting, crushing, or misaligned installation is prohibited. Tighten the nut at a steady pace and strictly control the assembly torque to avoid rubber deformation or loosening caused by over-compression, or micro-leakage caused by insufficient tightening.

3. Regular Inspections and Replacements Aligned with Equipment Maintenance Cycles

For standard hydraulic applications at ambient temperatures, inspections are recommended every 6–12 months, focusing on signs of hardening, whitening, deformation, or oil seepage on the ferrule. For applications involving frequent equipment start-stop cycles or pressure fluctuations, shorten the inspection interval and replace aging components promptly to prevent sudden pipeline leaks.

FAQ

Q1: What are the primary operating conditions and compatible media for NBR hydraulic ferrules?

A: NBR hydraulic ferrules are designed for standard industrial hydraulic applications, compatible with various mineral-based hydraulic oils, lubricants, and compressed air. They are widely used in general applications such as construction machinery, hydraulic power units, pneumatic equipment, and high-pressure water treatment piping. They are not suitable for high-temperature, highly corrosive, or special synthetic media environments; for such conditions, fluororubber (FKM) ferrules are recommended.

Q2: Can NBR ferrules resolve leakage issues caused by mismatched standards when mixing components from different brands?

A: Yes. This product is manufactured in strict accordance with DIN standard dimensions and sealing specifications, ensuring compatibility with mainstream hydraulic fittings and adapters on the market. It is ideal for retrofitting existing equipment, assembling export machinery, and integrating components across different brands. It eliminates leakage risks caused by specification mismatches or improper assembly clearances, removing the need for on-site welding or piping modifications.

Q3: Can an NBR ferrule be reused if it shows slight deformation?

A: Reuse is not recommended. NBR rubber is an elastic sealing consumable; disassembly often leads to irreversible compression deformation and a loss of elasticity. Reinstalling a used ferrule can result in poor sealing contact and reduced pressure-bearing capacity, creating a high risk of high-pressure leakage. We recommend installing a brand-new ferrule during equipment maintenance.

Q4: Why does the service life of the same NBR ferrule vary significantly between different pieces of equipment?

A: Service life is primarily determined by operating conditions. Under standard conditions—characterized by ambient temperatures, stable pressure, and clean media—the ferrule’s lifespan is consistent. Conversely, conditions involving frequent pressure pulses, high oil temperatures, contaminated media, or improper assembly accelerate rubber aging and wear, significantly shortening the service life; such variations are considered normal operational wear.

Q5: Does XYOON support the production of non-standard specifications and custom NBR hydraulic ferrules?

A: Yes, we do. In addition to standard sizes ranging from φ6 mm to φ42 mm, we can develop NBR sealing ferrules with non-standard dimensions and specific hardness levels to meet requirements regarding non-standard piping, unique assembly clearances, and specialized operating conditions. We support sample testing, small-batch customization, and mass contract manufacturing to accommodate diverse application needs.
