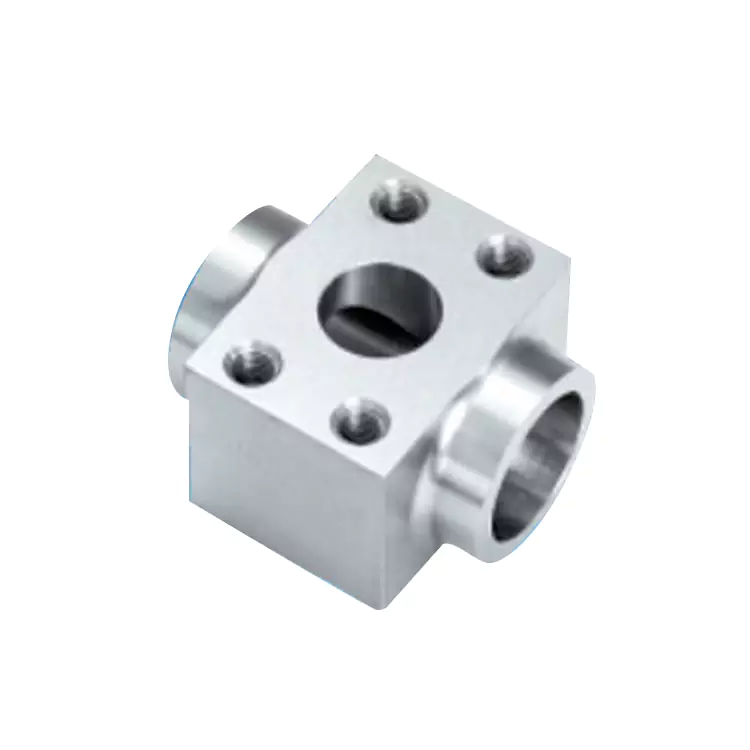

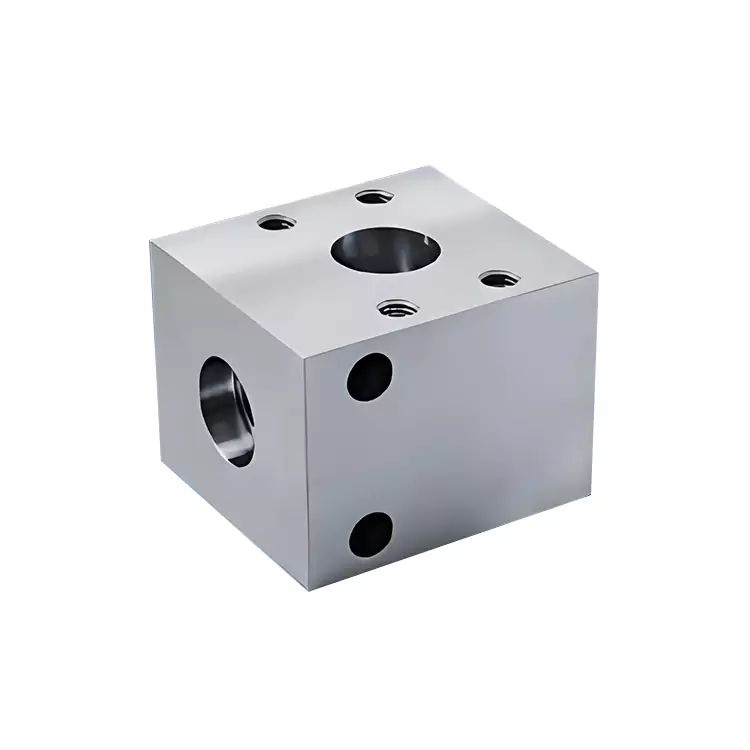

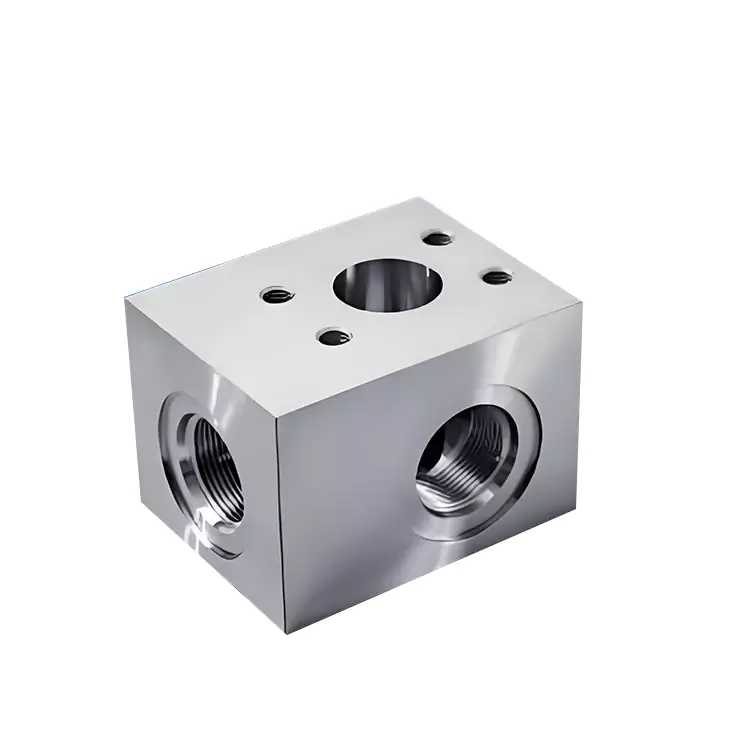

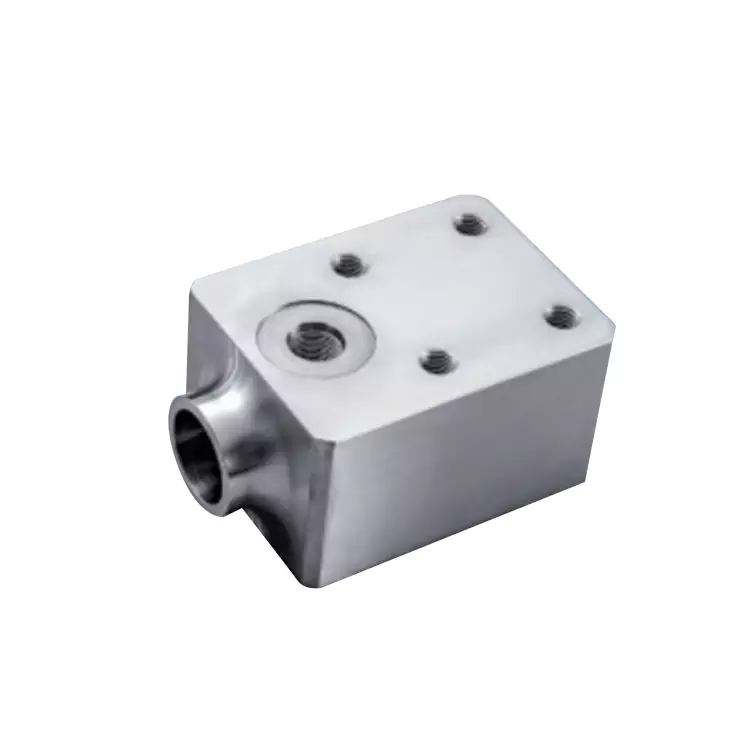

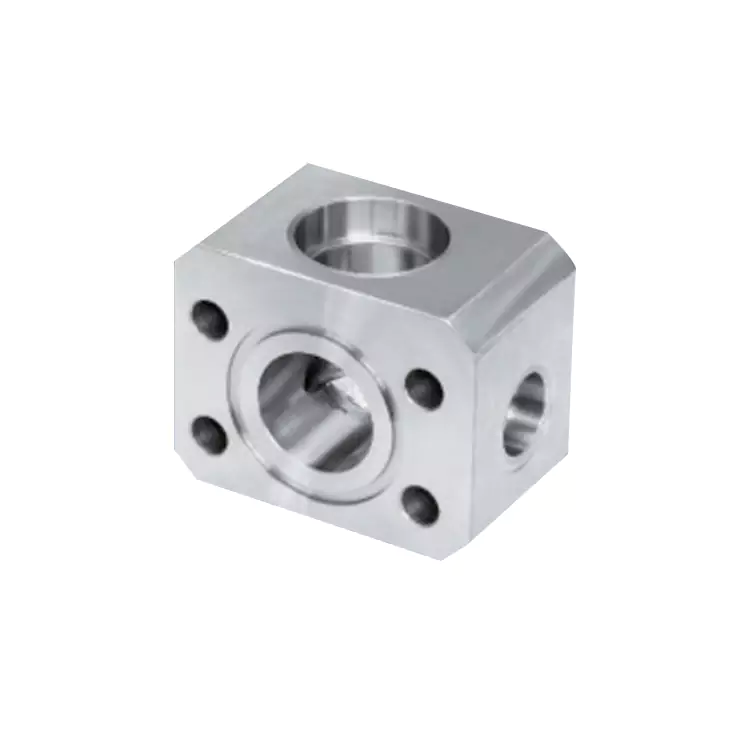

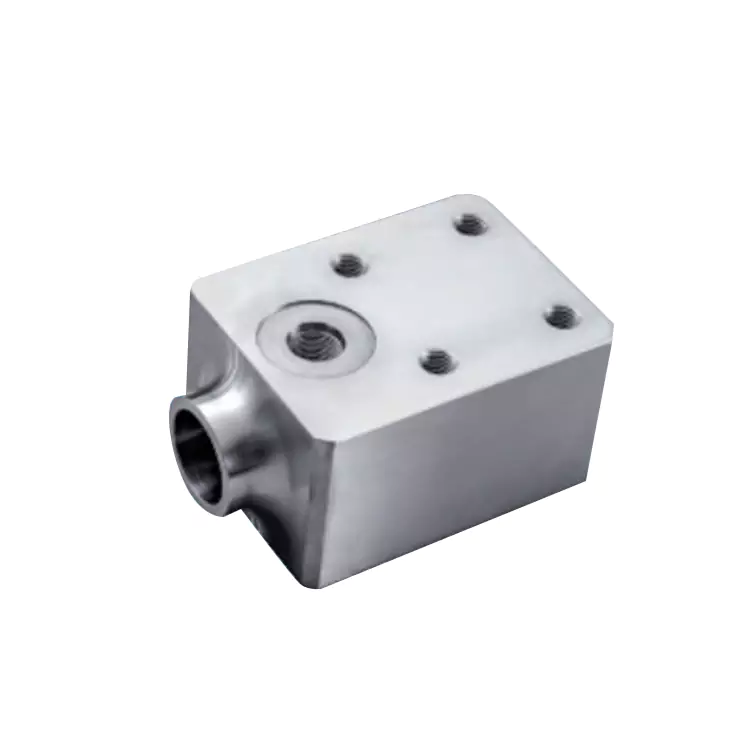

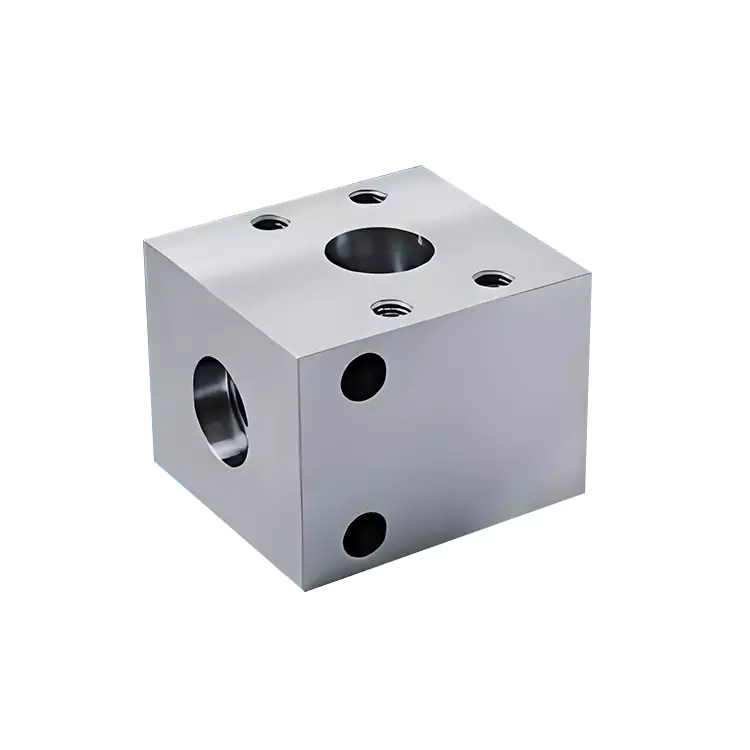

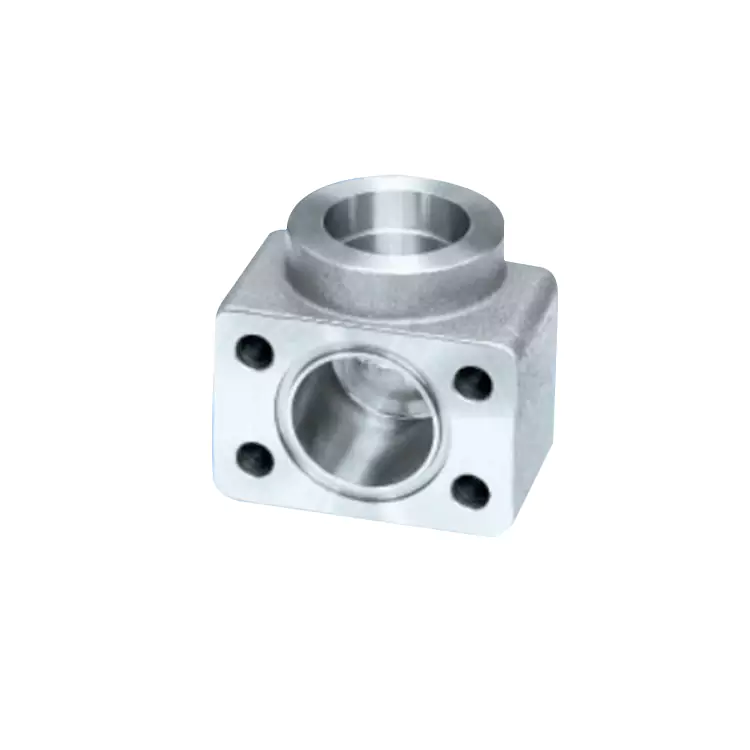

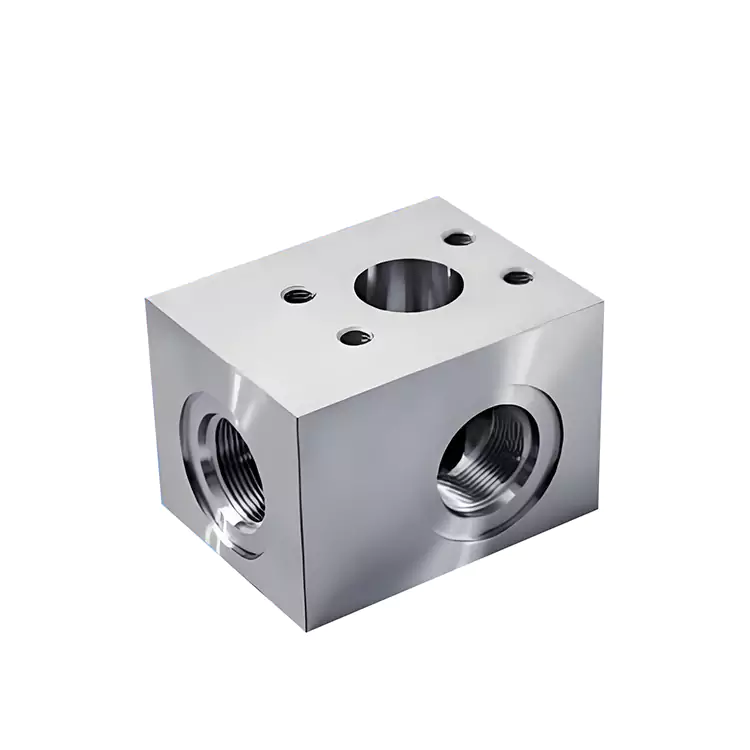

F37 Valve Block Straight Angle Tee Configurations are SAE J514 compliant integrated hydraulic flow distribution modules. Combining straight, angle and three-way mainstream pipeline structures, these valve blocks are integrally forged and precisely CNC machined. Rated for a maximum working pressure of 42MPa, the integrated structure eliminates complicated external piping, greatly reduces leakage points and shortens overall equipment assembly time. Custom options for special materials, port layouts and surface treatments are available, ensuring long-term stable operation in harsh hydraulic systems for marine, mining and heavy-duty machinery applications.
An F37 valve block is a standardized hydraulic distribution component that integrates multiple 37° flare flange ports into a solid metal block. F37 Valve Block Straight Angle Tee Configurations serves as a central junction point that splits, combines or redirects hydraulic fluid flow between pumps, valves, actuators and other system components.
Available in three basic configurations:
Straight: For inline flow distribution between two components
Angle: For 90° flow direction changes, eliminating the need for elbow fittings
Three-way: For splitting one flow into two or combining two flows into one
Manufactured in full accordance with international heavy-duty hydraulic standards, F37 valve blocks are fully qualified for overseas project bidding, complete machine export and third-party factory audits, effectively avoiding project acceptance risks.
All valve blocks strictly comply with SAE J514 F37 flare flange standards with standardized 37° sealing cone surfaces, port apertures and mounting dimensions. They are fully interchangeable with mainstream global F37 pipeline fittings and flange connectors without secondary drilling or thread modification.
Produced under ISO9001 quality management system, every valve block undergoes strict pressure holding testing, flow channel smoothness inspection and full dimensional verification to eliminate internal burrs, channel deviation and porosity defects. Batch orders are supported with factory test reports and material traceability certificates to facilitate overseas customs clearance and project filing.
Suitable for inline fluid transmission of hydraulic pumps, accumulators and main oil circuits. It replaces traditional multi-section pipe connections, reduces intermediate leakage points and ensures unobstructed main pipeline flow. Widely applied in main oil supply and return trunk lines of heavy equipment.

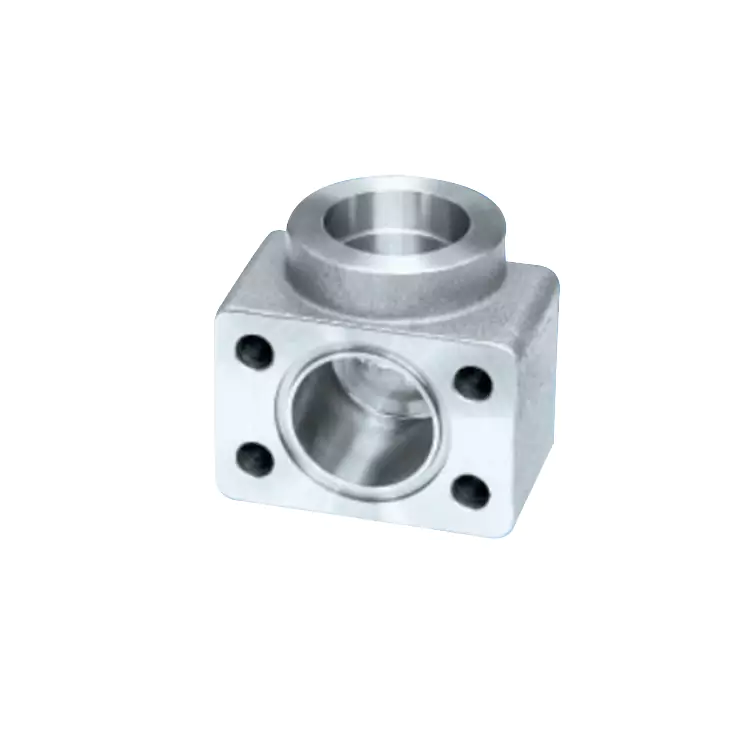

Designed to solve pipeline turning difficulties in limited installation spaces. It realizes 90-degree fluid direction switching and replaces conventional elbow and flange combinations. Ideal for compact cabin environments of marine, wind power and precision heavy machinery, it optimizes pipeline layout and simplifies later maintenance and inspection.
Used for hydraulic flow splitting and converging. It distributes single-path oil supply into two branches or combines two independent oil circuits into one integrated pipeline. Commonly used for multi-actuator synchronous oil supply, system pressure sampling and branch pressure relief, replacing traditional assembled pipe structures for neater and more reliable hydraulic layout.
Primary Application Industries:
Marine & Offshore: Ship hydraulic systems, offshore platform cranes, subsea equipment
Oil & Gas: Drilling rigs, well control systems, pipeline pumping stations
Metallurgy: Steel rolling mills, continuous casting machines, hydraulic presses
Power Generation: Hydroelectric turbines, thermal power plant hydraulic systems
Heavy Machinery: Large cranes, tunnel boring machines, port equipment
Flexible Customization Options
Custom port configurations and sizes
Integration of additional ports (pressure test ports, drain ports)
Special materials (alloy steel, duplex stainless steel, Hastelloy)
Custom surface treatments and coatings
Laser marking of customer part numbers and logos
Q1: What is the expected service life of XYOON F37 valve blocks?
A: Under normal operating conditions (within rated pressure and temperature), our F37 valve blocks have a service life of 10-15 years. The actual lifespan depends on factors such as fluid cleanliness, maintenance frequency and operating environment.
Q2: How often should I inspect and maintain F37 valve blocks?
A: We recommend performing a visual inspection for leaks and corrosion every 3 months. A comprehensive inspection including torque check and pressure test should be conducted annually. For systems operating in harsh environments (high vibration, high humidity, corrosive atmospheres), the inspection frequency should be increased to once every 6 months. Regular maintenance can extend the service life of the valve blocks by 30-50%.
Q3: What is the maximum working pressure of XYOON F37 valve blocks?
A: The standard F37 valve block supports a stable working pressure up to 42MPa, fully meeting the high-pressure demand of heavy machinery, mining and marine hydraulic systems. We can customize reinforced thick-wall valve blocks for ultra-high pressure working conditions above 42MPa.
Q4: Can the F37 Valve Block Straight Angle Tee Configurations be customized with additional test ports and drain ports?
A: Yes. We support personalized opening design such as pressure measuring ports, drain ports and sensor mounting ports according to customer system design requirements, which facilitates real-time pressure monitoring, system pressure relief and daily pipeline maintenance.
Q5: What surface treatments are available for F37 valve blocks?
A: Carbon steel valve blocks adopt anti-rust oil sealing and black oxide treatment; stainless steel blocks adopt pickling and passivation. We also support customized electrophoretic painting, hard anodizing and anti-corrosion coating for marine and chemical harsh environments.
Q6: Why choose integrated F37 valve blocks instead of traditional split pipe fittings?
A: The integrated block structure reduces 70% of pipeline connection points, effectively avoiding leakage risks caused by excessive intermediate joints. It simplifies the overall pipeline layout, shortens equipment assembly cycle by 50%, and reduces later maintenance and troubleshooting costs significantly.
